Allen-Bradley 1336-Series AC Drives
85
F232120
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electrical Interference
EMI
Careful attention must be given to the arrangement of
power and ground connections to the drive to avoid
interference with nearby sensitive equipment. Be sure
to replace all ground connections to their appropriate
locations.
RFI
Drives can be installed with an RFI filter, which
controls high-frequency conducted emissions into the
main supply lines.
Where it is essential that very low emission levels
must be achieved or if conformity with standards is
required, the optional RFI filter may be present.

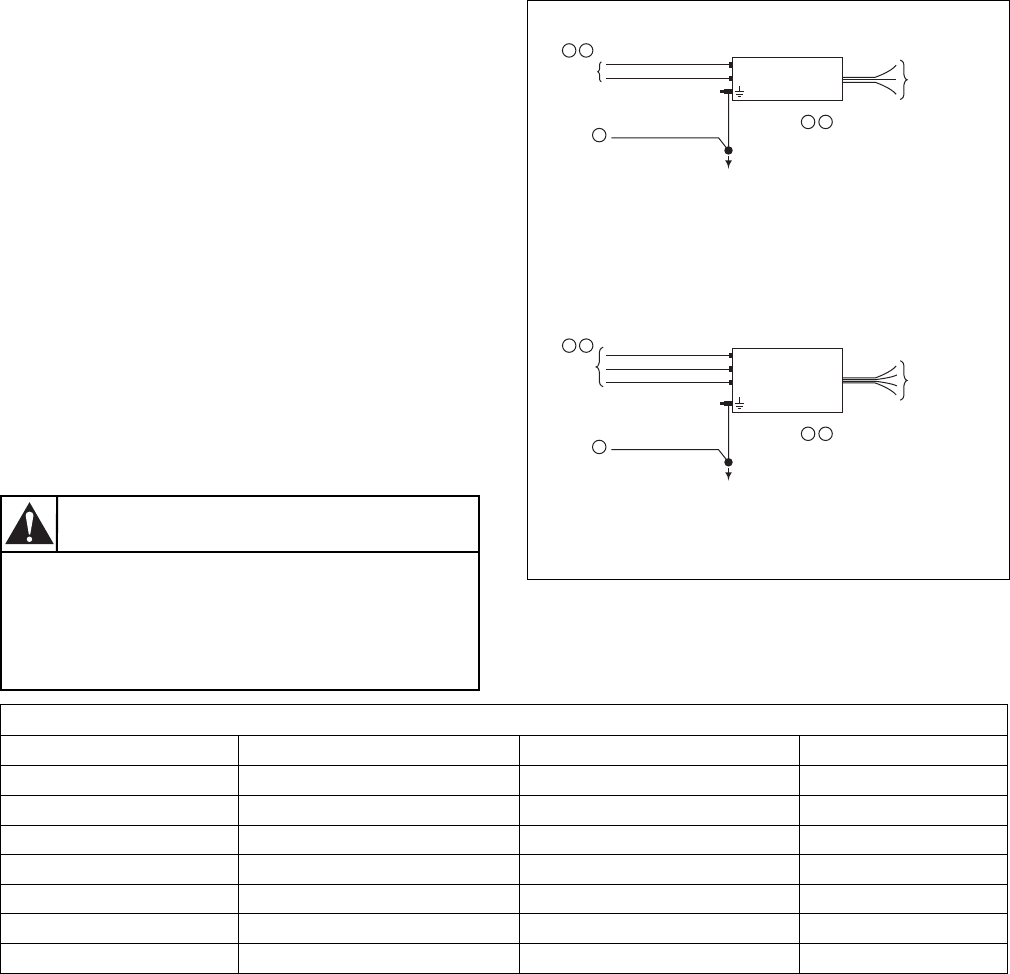

Figure 47 displays an electrical schematic for various
RFI configurations. Table 47 shows associated RFI
filter part numbers.
Figure 47
CAUTION
ELECTRIC SHOCK HAZARD! Service and
maintenance to be performed only by an
authorized technician. Disconnect power
before opening any access panels.
W661
U166ME3A
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER
L3
LINE
LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
THREE PHASE MACHINES
INPUT
POWER
1 2
3
2
3
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER
LINE
LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
SINGLE PHASE MACHINES
INPUT
POWER
1 2
3
2
3
U166ME3
A
RFI Filter Part Number Information
Drive P/N Drive Catalog Machine Voltage Filter P/N
370838 1336-AQF50 200-240V/1 Phase Not Available
370838 1336-AQF50 200-240V/3 Phase 330274
370835 1336-BRF50 380-480V/3 Phase 330273
370837 1336-AQF100 200-240V/3 Phase Not Available
370834 1336-BRF100 380-480V/3 Phase 330274
370828 1336-AO15 200-240V/3 Phase 330268
370825 1336-BO25 380-480V/3 Phase 330268
Table 47
