Allen-Bradley 1305-Series AC Drives
F232120
64
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Terminal Block Access
The following information illustrates the terminal
block designations for each of the drive models.
To access the power and control terminal blocks, refer
to Figure 38 and perform the following procedure:
1. Remove power from the machine at main
disconnect.
2. Lower hinged panel located below HIM or blank
front cover.
3. For drives equipped with a blank front panel,
slide panel downward and remove it from drive.
Skip to Step 5.
4. For drives equipped with a Human Interface
Module (HIM), press retaining lever directly
beneath the HIM and slide the HIM downward to
remove it from drive.
5. Loosen front panel fastener by rotating
counterclockwise 90 degrees. Refer to Figure 38.
6. Holding upper corners of front panel, pull top of
panel down 90 degrees and lift off.

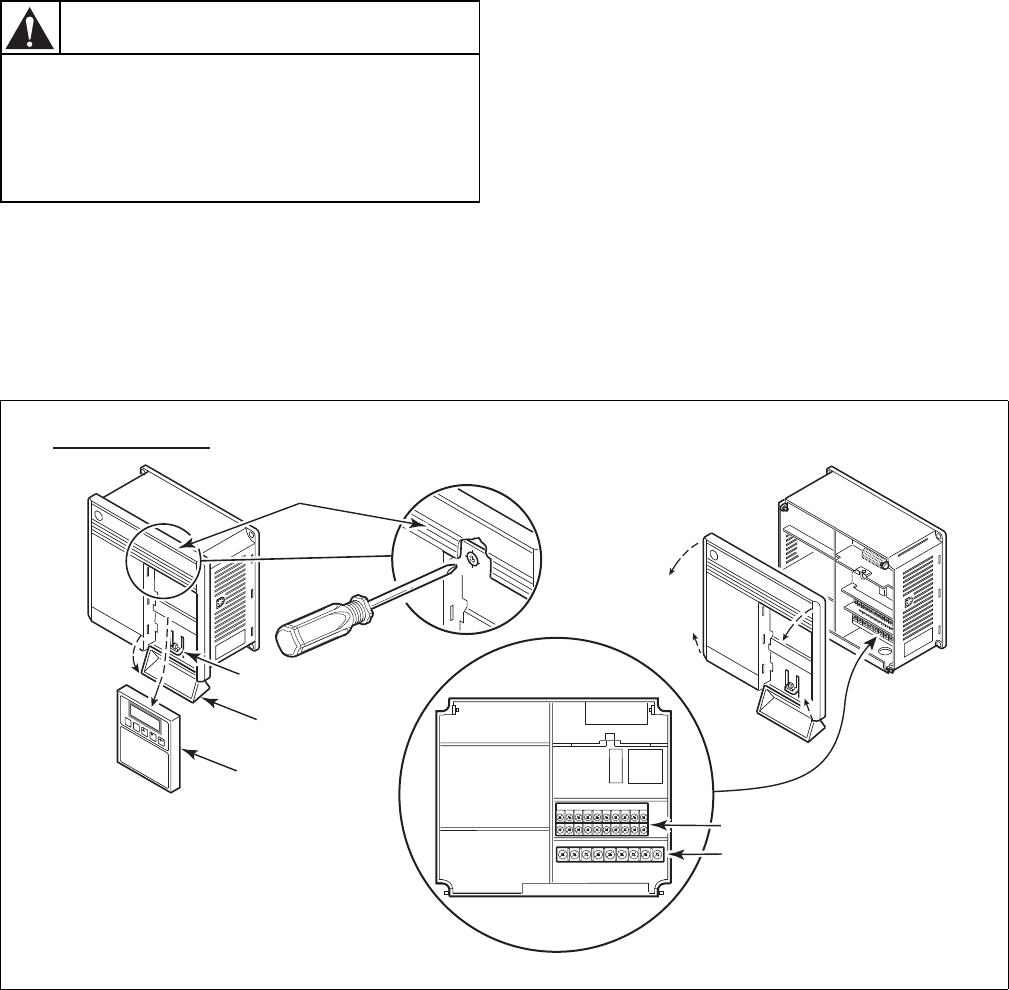

Figure 38
WARNING
To reduce risk of electric shock, severe
injury or death, allow machine power to
remain off for three minutes minimum prior
to working in and around AC drive. Proceed
with caution.
W662
U145ME3B
E
S
C
S
E
L
Stopped
+0.00 Hz
TB2
Retaining Lever
Front Panel
Hinged Panel
HIM
TB1
U145ME3B
A-B 1305
