CopyCat Keypad Operation

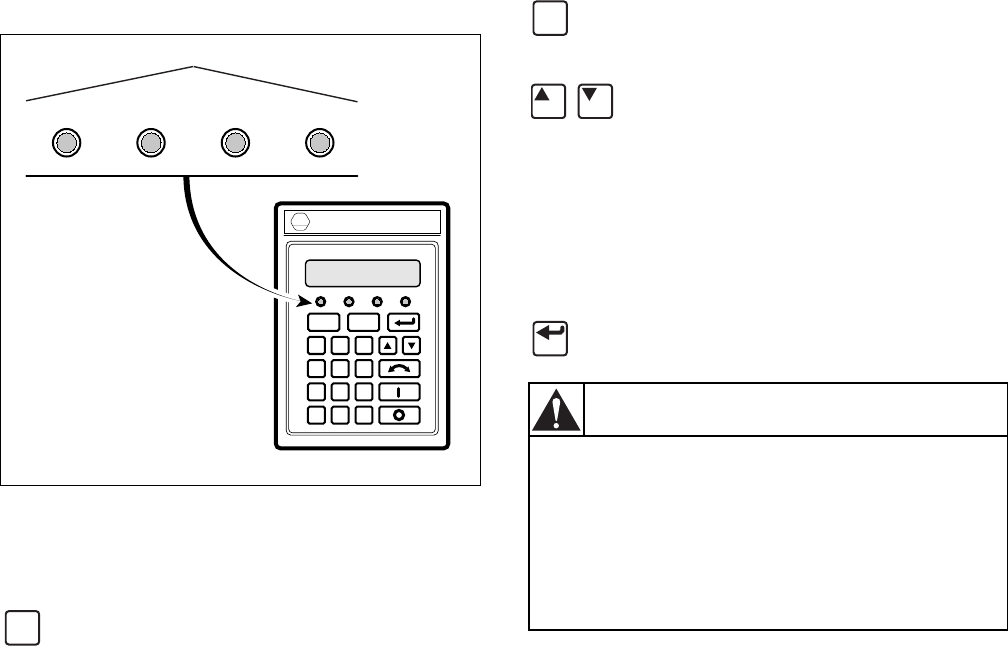

Figure 35
CopyCat Keypad – Key Explanation
Indicator LEDs. Indicate mode of operation.
Escape key. Use to navigate a menu structure.
Press to select mode of operation or, in Edit mode, to
cancel an edit sequence.
Select key. In Program mode, press to use Up or
Down arrow keys to edit a parameter value.
Up and Down arrow keys. In Program
mode, use to scroll parameter numbers or change a
parameter value. In Load mode, use to select a menu
option. In Display mode, use to scroll through display
parameters.
Numeric keys. Numbers 0 through 9, decimal point,
and Delete keys enable direct entry of parameter
values.
Enter key. Press to save a new parameter value.
ALLEN-BRADLEYAB
ESC
PROGRAM LOAD RUN REVERSE
12
3
45
6
78
9
.
0
SEL
DEL
U175ME1A
INDICATOR LEDS
PROGRAM LOAD RUN REVERSE
ESC
SEL
CAUTION
Users are prohibited from changing
parameter values unless specifically
instructed by the washer-extractor
manufacturer. Modification to parameter
values may present potential harmful
operating conditions for both hardware and
personnel.
W673
