Allen-Bradley 1305-Series AC Drives
75
F232120
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

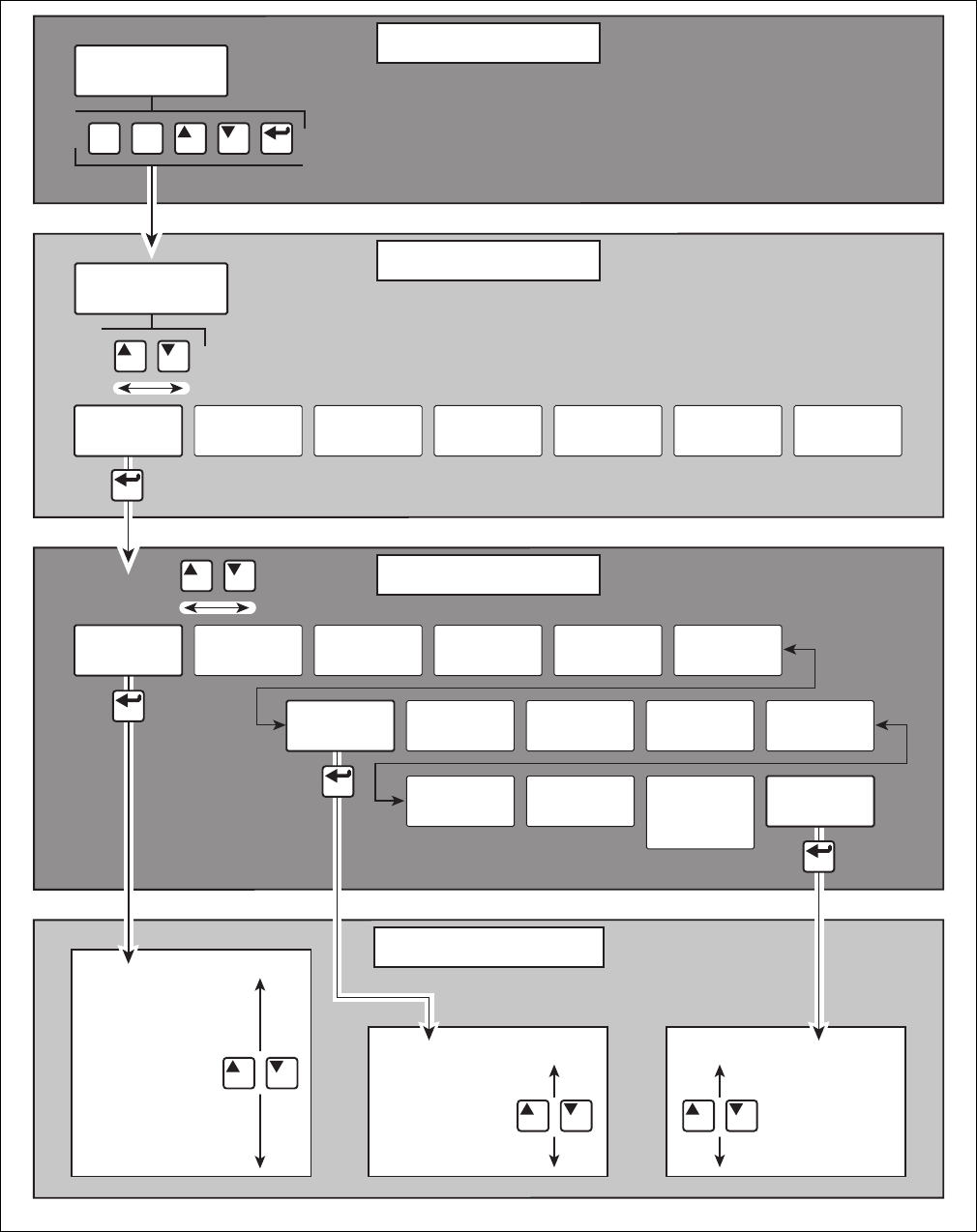

HIM Structure Chart – Series A 3.00,
Series B 1.01 or Later Versions
Diagnostics
Ratings
(1336 only)
Masks Owners
Adapter I/O
Process
Display
Encoder
Feedback
(1336 only)
Setup
Advanced
Setup
Frequency
Set
Feature
Select
Output
Config
PARAMETER LEVEL
Power-Up Mode &
Status Display
Output Current
Output Voltage
Output Power
DC Bus Voltage
Output Freq
Freq Command
...
Heatsink Temp
Last Fault
...
Fault Buffer 0
Fault Buffer 1
Fault Buffer 2
Fault Buffer 3
...
ESC SEL
OPERATOR LEVEL
MODE LEVEL
Display Process Program EEProm Search
Control
Status
Password
"Choose Mode"
GROUP LEVEL
Parameters
Listed By
Number
Metering
Faults
Linear List
U141M
