Chapter 7: Configurations

145

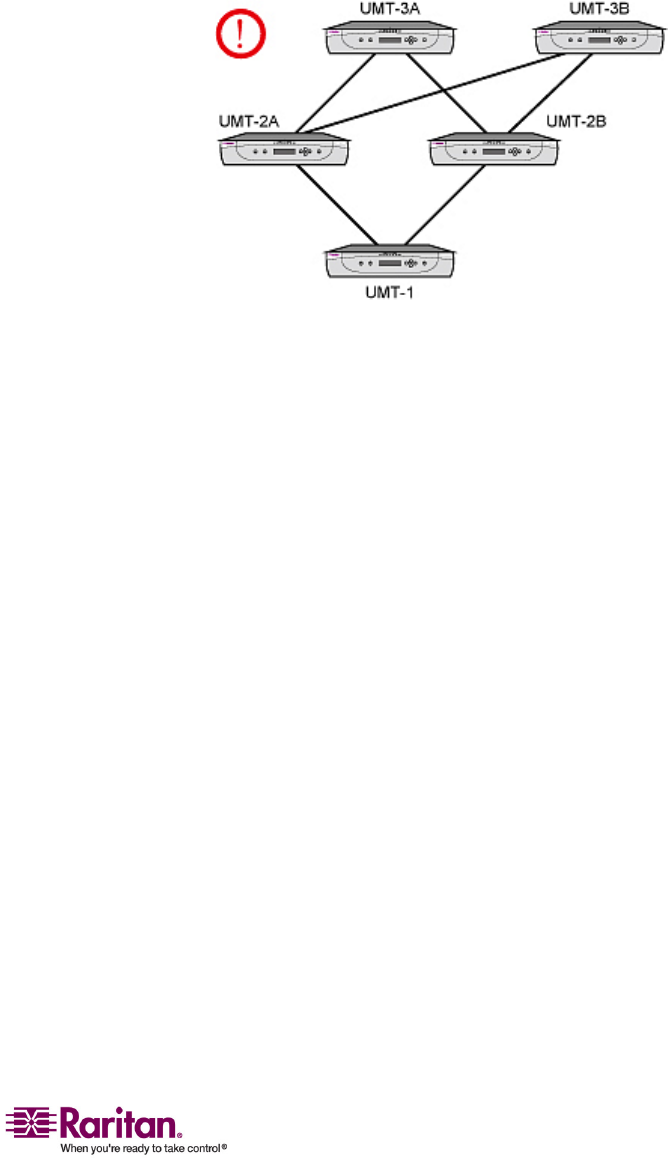

Doublediamondconfiguration

Officially,theDoubleDiamondconfigurationisNOTaRaritan‐approved

solutionifStackingUnitsorP2‐HubPacisincludedintheconfiguration.

Therefore,itishighlyrecommendedtoavoidthisconfiguration

especiallywhenusingParagonIIStackingUnitsorP2‐HubPac.





Redundant Configuration

Theseconfigurationsaresimplymorecomplexconfigurations,andmight

beusedtoensureredundancy;everyBaseUnitisconfiguredtoanother,

incaseofindividualsystemfailure.

¾Theprocedureoutlinedbelowmustbefollowedtoensurethisconfiguration

functionsproperly:

 Afterinstallation,allParagonswitchesshouldundergoaFUNC

resettoclearthedatab

ase.SeeʺResetUnitʺunderParagonII

FrontPanelDisplayandControls(onpage16)formore

inform

ationonclearingthedatabase.Thisprocedureshouldbe

performedstartingfromthethird‐tierdevicedowntotheBase

Unit.

 ExecutetheFUNCresetinthefollowingorder:UMT‐3AÆ

UMT‐3BÆUMT‐2AÆUMT‐2BÆUMT‐1AÆUMT‐1B.

 Wheneverath

ird‐tierParagonswitchisreplaced,allofthe

second‐tierParagonswitchesandBaseUnitsshouldundergoa

FUNCreset.

 Wheneverasecond‐tierParagonswitchisreplaced,alloftheBase

UnitsshouldundergoaFUNCreset.
