Paragon II and Z-CIMs

128

5. PlugtheUKVMSPDHD15strandintotheHD15VGAvideoportof

theserveryouwanttoaccess.Plugthepurple6‐pinmini‐DIN

keyboardstrandintotheserver’s6‐pinmini‐DINkeyboardport.Plug

thelightgreen6‐pinmini‐DINstrandintotheserver’s6‐pin

mini‐DI

Nmouseport.

6. PluginandpowerONtheserver.IftheUKVMSPDisinstalledand

operatingproperly,theUKVMSPDgreenLEDwillstartblinking

(oncepersecondwhentheUKVMSPDisidle,morequicklywhile

datapassesineitherdirection).

Oncethisinstallationisfinished,activateLocalPCMo

deontheuser

station:

1. Loginattheattacheduserstation.

2. Pressthehotkey(default:ScrollLock)twicerapidlytoactivatethe

OSUI.

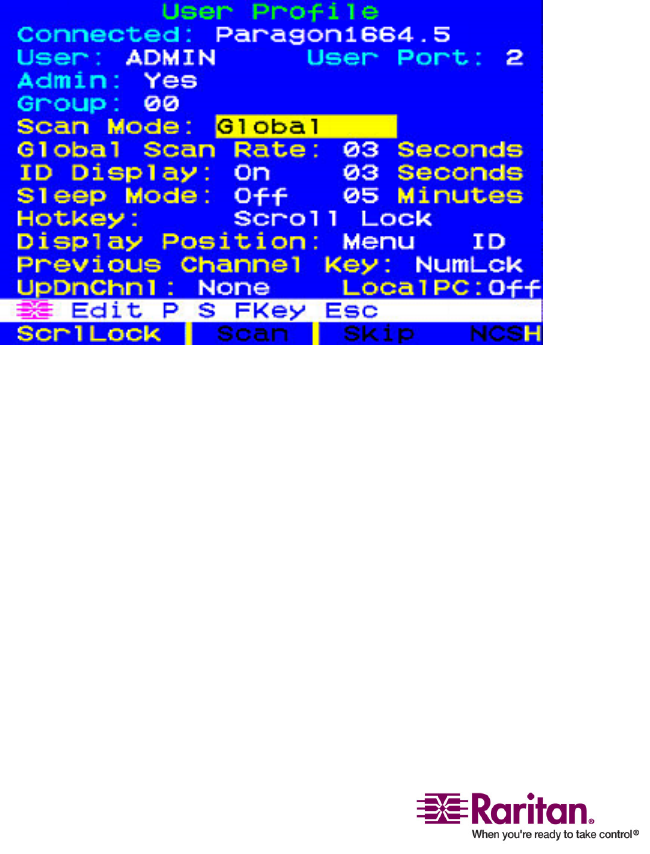

3. PressF4toactivatetheUserProfilemenu.



4. UseTabortheÏandÐkeystomovethehighlighttotheLocalPC

field.

5. PressEnter.TheLocalPCfieldwillturngreen.

6. UsetheÏandÐtotogglethevalueofthefieldto“On.”

7. PressEnter.Thehighlightwillturnye

llow.

8. PressStosavethechange.Ifyoudonotwishtosavechanges,press

theEsckeytoabortthechanges.
