Configure and Start Up the Kinetix 350 Drive System Chapter 5
Status Indicators
The Kinetix 350 drive has four status indicators and a four-digit display on the
top front panel as shown below. These status indicators and the display are used
to monitor the system status, activity, and troubleshoot faults.

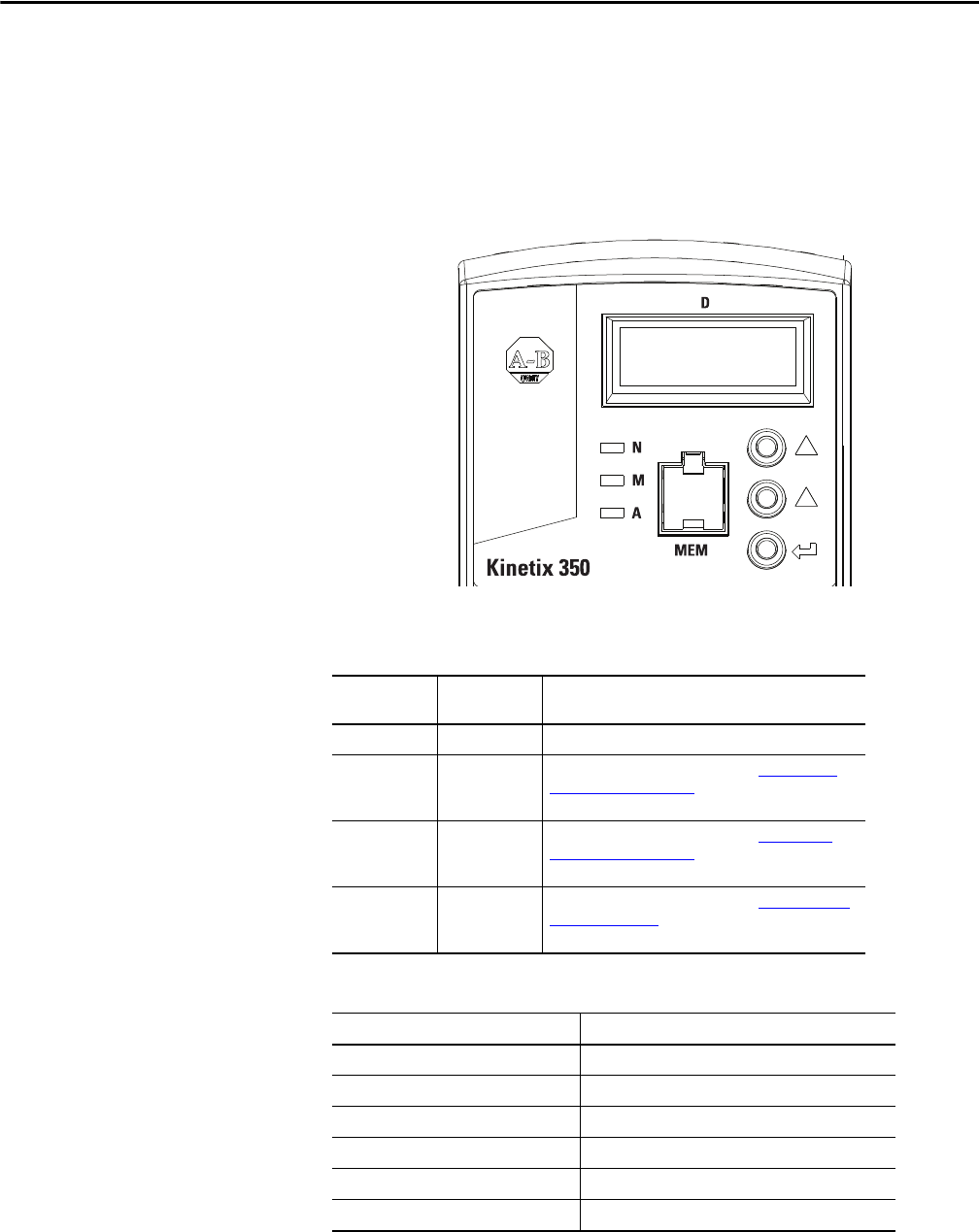

Figure 45 - Front Panel Display
Table 36 - Module State Status Indicator
Table 35 - Status Indicators
Status
Indicator
Function Description
D Data entry Yellow status indicator flashes when changing.
N Network state
Indicates the state of the Network. See Network State
Status Indicator on page 80. The bicolored status indicator
shows red, green, or amber.
M Module state
Indicates the state of the Network. See Module State
Status Indicator on page 79. The bicolored status indicator
shows red, green, or amber.
A Axis state
Indicates the state of the Network. See Axis State Status
Indicator on page 80. The bicolored status indicator shows
red, green, or amber.
Status Indicator State
Off Power off
Flash red/green Drive self-testing
Flashing green Standby
Solid green Operational
Flashing red Major recoverable fault
Solid red Major unrecoverable fault
