Rockwell Automation Publication 2097-UM002C-EN-P - December 2013 63
Connect the Kinetix 350 Drive System Chapter 4
Wiring the Kinetix 350 Drive
Connectors
This section provides examples and wiring tables to assist you in making
connections to the Kinetix
350 drive.
Wire the Safe Torque-off (STO) Connector
For the safe torque-off (STO) connector pinouts, feature descriptions, and wiring
information, refer to
Chapter 6 on page 101.

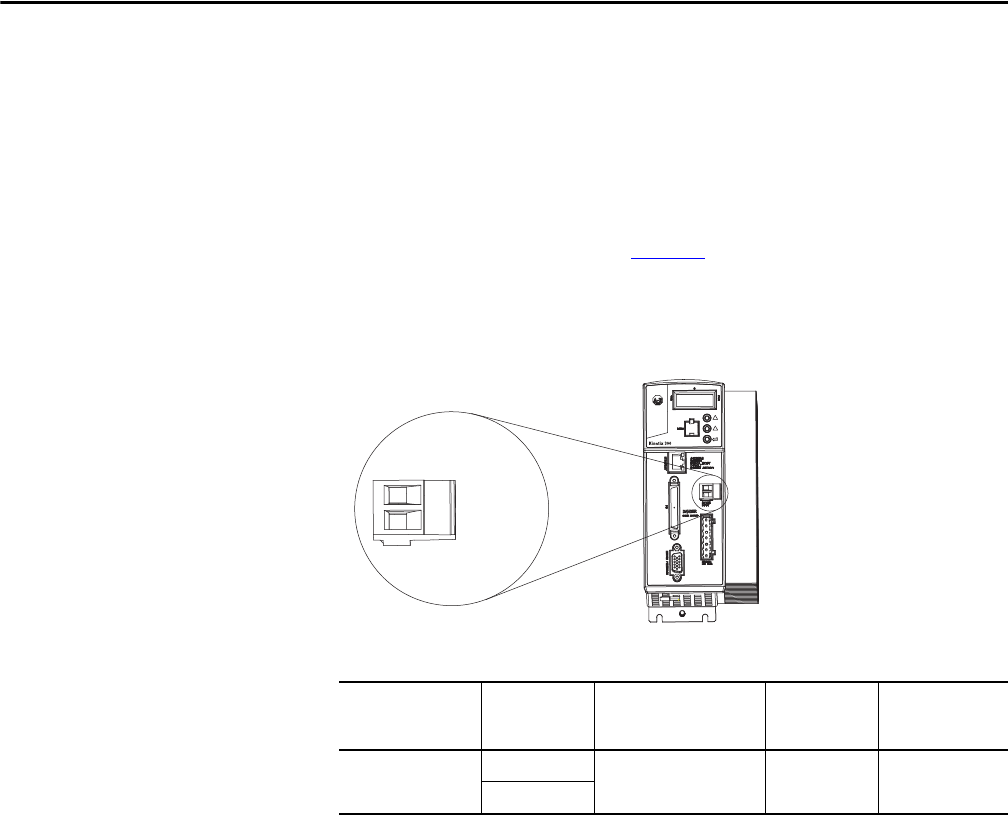

Wire the Back-up Power (BP) Connector
Table 24 - Back-up Power (BP) Connector
+
24
-
+24V DC
-24V DC
Kinetix 350 Drive, Front View
Drive Cat. No. Terminals
Recommended
Wire Size
mm
2
(AWG)
Strip Length
mm (in.)
Torque Value
N•m (lb•in)
2097-V3xPRx-LM
+24V DC
1.5 (16) 6 (0.25) 0.5 (4.5)
-24V DC
