c) Raise the cabinet top (see page 4-4
for the procedure).
d) Loosen the clamp and disconnect the
end of the dispenser hose from its wa-
ter inlet/dispenser valve connector.
NOTE: The dispenser hoses are per-
manently attached to the dispenser.
They are not intended to be removed.
4. To remove the fresh fill inlet valve:
a) Raise the cabinet top (see page 4-4 for
the procedure).

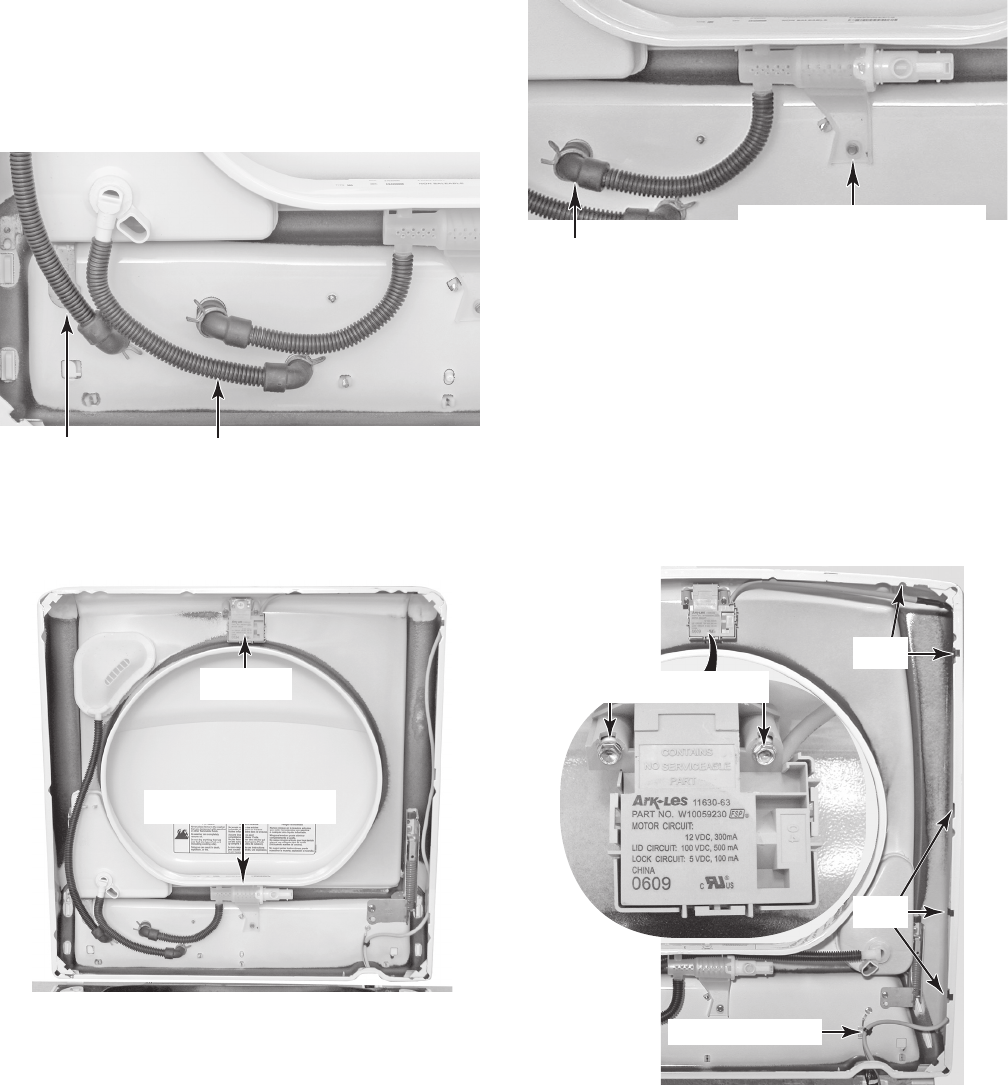

Valve Hose
Fresh Fill Inlet Valve Screw
Fresh Fill Inlet Valve
b) Loosen the clamp and disconnect the
end of the fresh fill inlet valve hose
from its water inlet/dispenser valve
connector (see the top right photo).
NOTE: The fresh fill inlet valve hose is
permanently attached to the inlet. It is
not intended to be removed.
5. To remove the lid lock:
a) Raise the cabinet top (see page 4-4 for
the procedure).
b) Remove the two hex-head screws from
the lid lock and remove the lock.
c) Cut the indicated cable standoff from
the cabinet top.
d) Unclip the lid lock cable from the cabi
-
net top flange.
Lid Lock
Cable Standoff
c) Remove the screw from the fresh fill
inlet valve and remove the valve as
-
sembly.
Lid Lock Screws
Dispenser Hoses
Clips
Clips
