4-3
User Interface Board

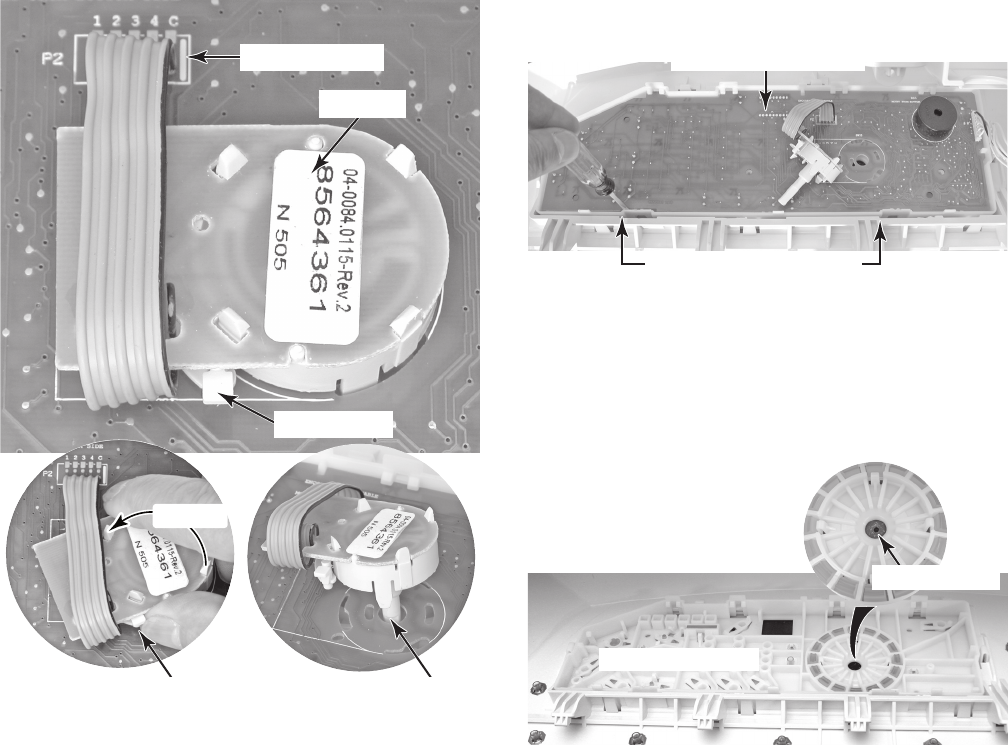

8. To remove the encoder, lift the locking
tab, and turn the encoder to the left (coun
-
terclockwise) as far as it will go, then lift
the encoder straight up so that the shaft
slides out of the rubber console seal, and
remove it from the console. NOTE: Do not
flex the encoder ribbon cable wires at the
user interface board or they could break.
Encoder Wires
Locking Tab
Encoder
Remove
Lift Locking Tab
NOTE: Before you can remove the user in-
terface board, you must first remove the en
-
coder.
9. To remove the user interface board:
a) Remove the encoder (see step 8).
b) Using a flat-blade screwdriver, carefully
pry the front edge of the user interface
board up, then pull the board forward,
and remove it from the console.
Pry Up Edge Of Board
REASSEMBLY NOTE: When you reinstall
the encoder, make sure that the rubber seal
does not become dislodged when installing
the encoder shaft, or else water can leak into
the console area.
Pull Shaft From Seal
Console Seal
Rear Of Console
