Operation
510975
44

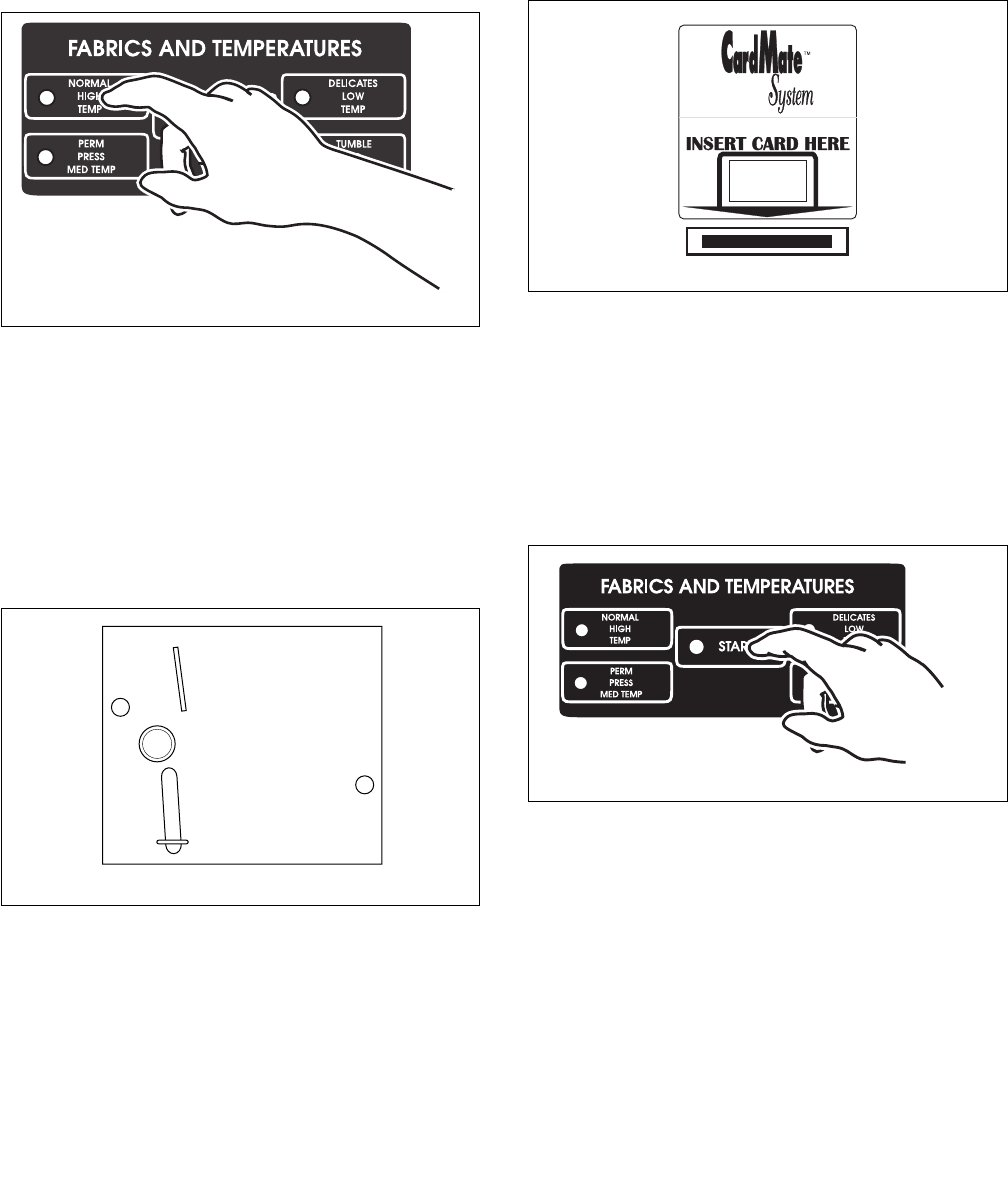

Step 5: Set Fabric Selector
Select NORMAL (High Temp), PERM PRESS (Med
Temp), DELICATES (Low Temp) or TUMBLE (No
Heat) by pushing touchpad.
NOTE: Always follow manufacturer’s care label
instructions.
Figure 40
Step 6: Insert Coin(s) or Card
To Insert Money
Insert coin(s) in coin slot. Check pricing as seen on
digital display.
If Additional Time Feature is turned on, additional
dryer time may be purchased at cycle start or while
dryer is running.
Figure 41
To Insert Card
Insert card into opening. Follow directions on display.
DO NOT REMOVE THE CARD UNTIL DISPLAY
READS “Remove Card.”
Remove knits when slightly damp because overdyring
may cause shrinkage. Do not tumble dry knit woolens.
Figure 42
Step 7: Start Dryer
To start dryer, push START pad.
To stop dryer at any time, open the door. To restart the
dryer, close door and push START pad.
Cycle is completed when time remaining reaches
00 minutes.
Figure 43
D294I
W387I
D294I
M330I
D296I
D296I
