© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
27
510975
11. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the cabinet. Refer to
Figure 17.
12. Reinstall the access plate and screw to the rear of
the dryer unit cabinet.
.

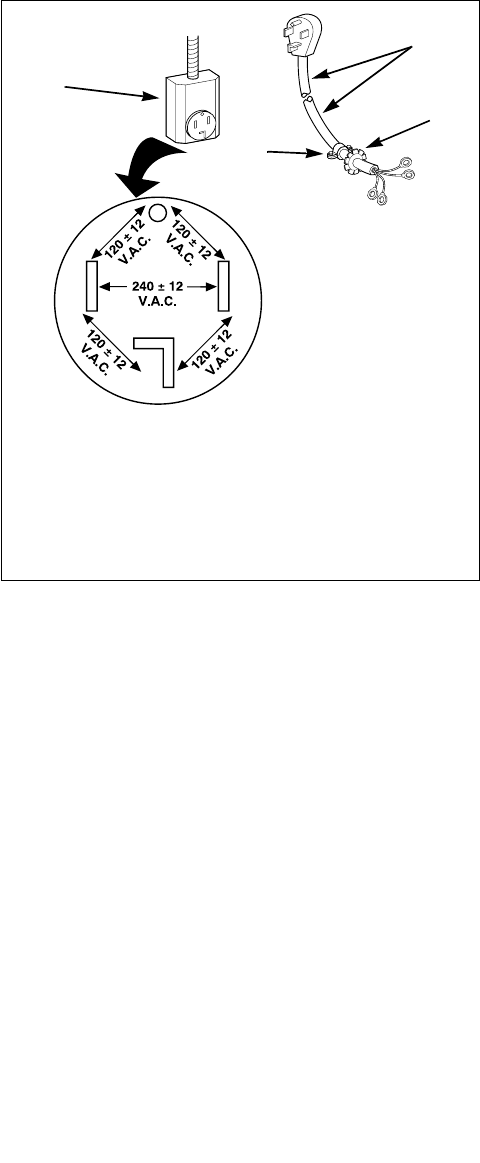

Figure 16
D815I
1 Typical Four-Wire Receptacle
2 Power Cord – Not Supplied with Dryer
(Four-Wire)
3 Strain Relief Nut
4 Strain Relief
1
2
3
4
