Installation
39
510975
Figure 26
.
Figure 27
H318I
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening must be
sized per local codes.
3 Clearance per Local Codes
4 No Screen or Cap
5 Clean Out Cover – Inspect Monthly
2 Wall

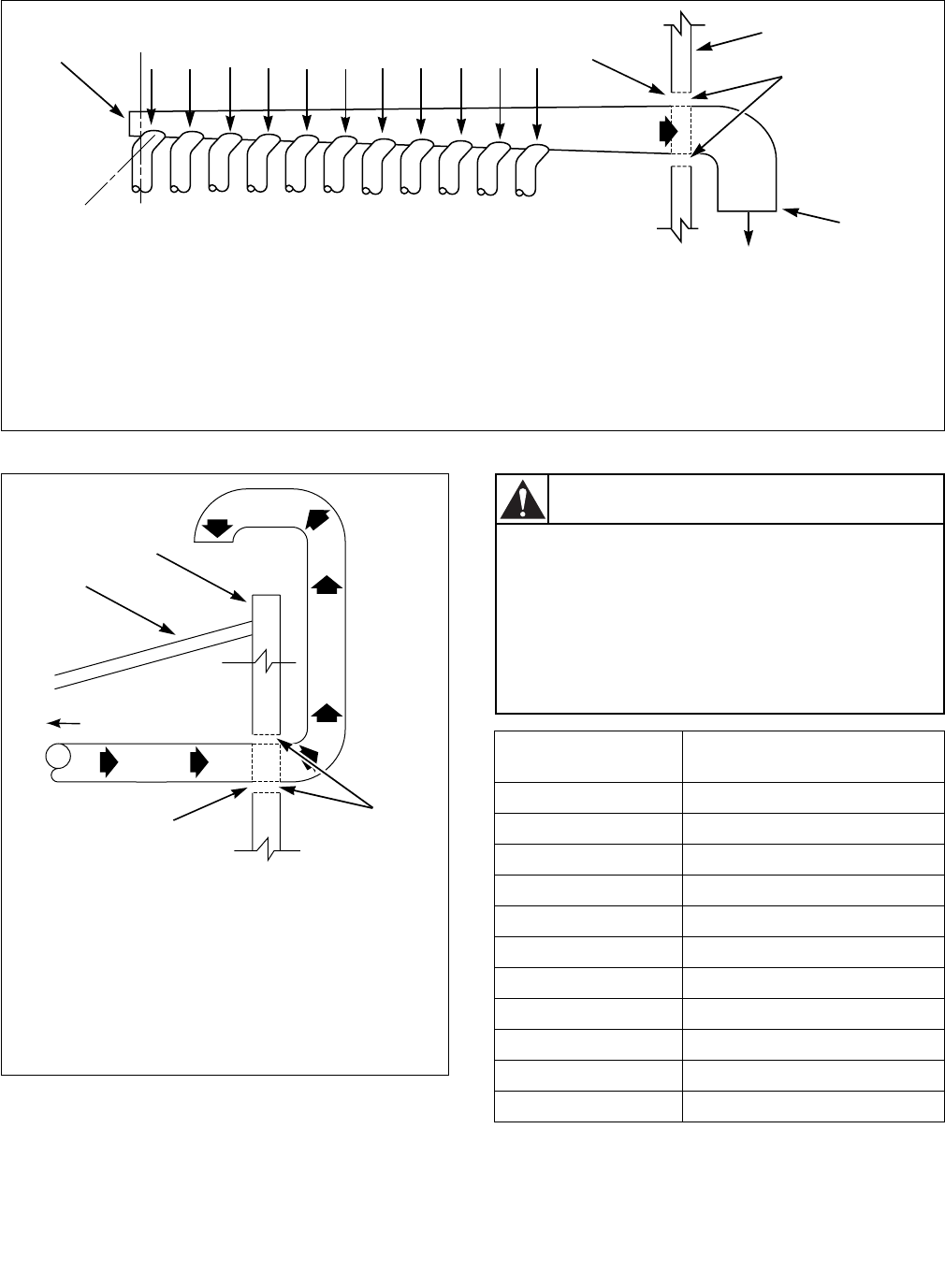

HORIZONTAL EXHAUST INSTALLATION
2
3
4
EXHAUST
OUTLET
1
A
BC
DEFG
HIJ
K
AIR
FLOW
EXHAUST AIR FLOW
MAXIMUM LENGTH OF
DUCT 30 feet (9.1 m)
30°
5
H319I
1 Roof
2 Wall
3 2" (5 cm) Minimum
4 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, an opening must
be sized as shown or per local codes.
1
2
3
4
VERTICAL EXHAUST INSTALLATION
CONNECT TO DRYER
Duct Station
Minimum Diameter of
Collector Duct
A 4 inches (10.2 cm)
B 8 inches (20.3 cm)
C 9 inches (22.9 cm)
D 10 inches (25.4 cm)
E 11 inches (27.9 cm)
F 12 inches (30.5 cm)
G 13 inches (32.6 cm)
H 14 inches (35.6 cm)
I 15 inches (38.1 cm)
J 15 inches (38.1 cm)
K 16 inches (40.6 cm)
To reduce the risk of fire and the
accumulation of combustion gases, DO
NOT exhaust dryer air into a window well,
gas vent, chimney or enclosed,
unventilated area, such as an attic, wall,
ceiling, crawl space under a building or
concealed space of a building.
W045
WARNING
