Installation
15
510975
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
For further assistance, refer to section on Gas
Requirements.
1. Make certain dryer is equipped for use with the
type of gas in laundry room. Dryer is equipped at
the factory for Natural Gas with a 3/8" N.P.T.
gas connection.
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal and external)
for gas leaks with a non-corrosive leak detection
fluid.
5. For L.P. (Liquefied Petroleum) gas connection,
refer to section on Gas Requirements.

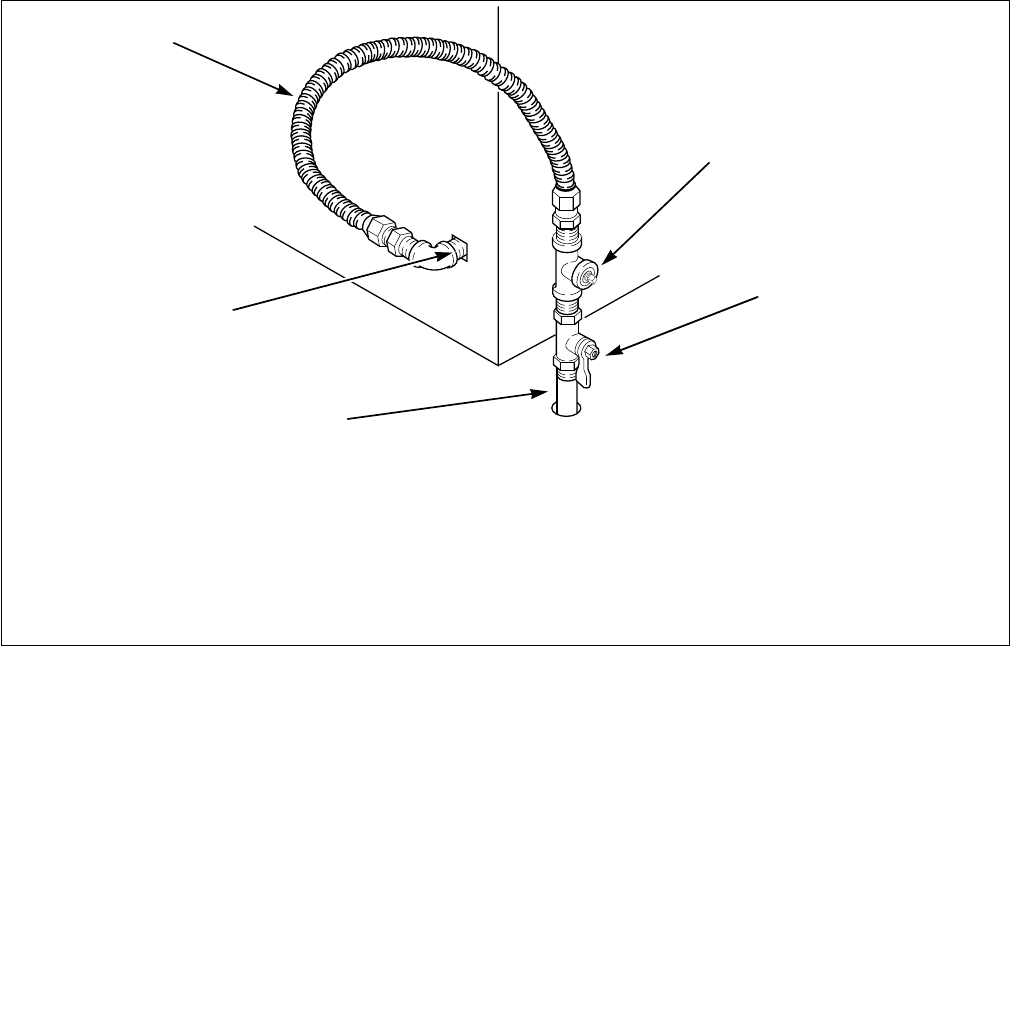

Figure 7
D233I
1 New Stainless Steel Flexible Connector –
Use only if allowed by local codes
(Use Design A.G.A. Certified Connector)
4 Black Iron Pipe
Shorter than 20' (6.1 m) – Use 3/8" pipe
Longer than 20' (6.1 m) – Use 1/2" pipe
2 1/8" N.P.T. Pipe Plug
(For checking inlet gas pressure)
5 3/8" N.P.T. Gas Connection
3 Equipment Shut-Off Valve – Installed within 6'
(1.8 m) of dryer
D233I
1
2
3
4
5
