Installation
17
510975

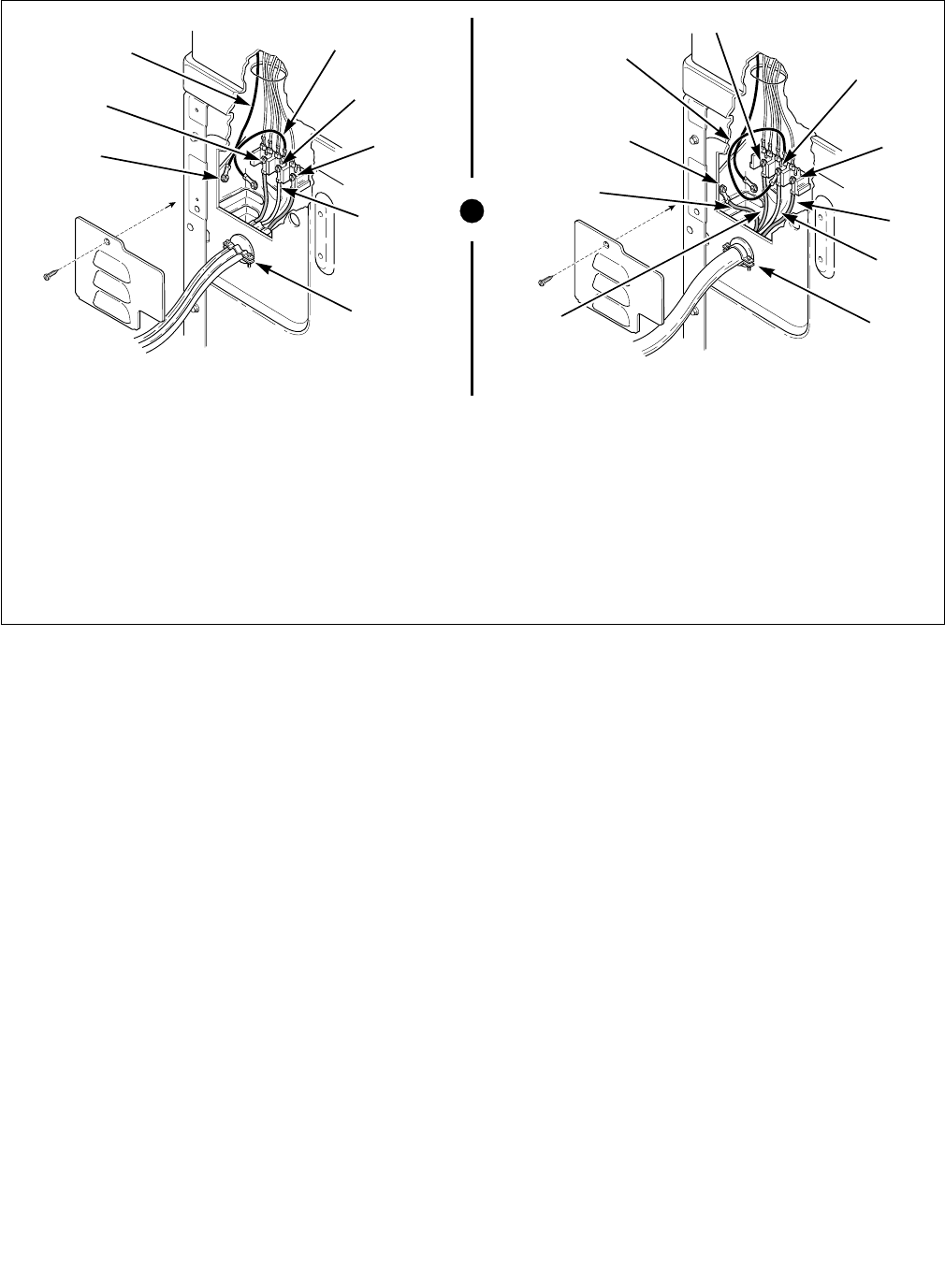

Figure 9
D679I D680I
NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer with access
cover removed.
1 Ground Wire 7 Ground Screw
2 Ground to Neutral Wire 8 “L1” Terminal
3 Neutral Terminal 9 Black Wire
4 “L2” Terminal 10 White Wire (Neutral)
5 Center Wire (Neutral) 11 Red Wire
6 Strain Relief (Not supplied with dryer)
D679I
D680I
1
THREE-WIRE CONNECTION
3
2
8
7
4
5
6
1
1
3
8
4
6
9
10
11
7
FOUR-WIRE CONNECTION
