Page 332 of 906 NT5D97 Dual-port DTI2/PRI2 card
553-3001-211 Standard 3.00 August 2005
NTCK78AA (A0618294)
The NTCK78AA (50 ft.) is an 120Ω cable for connecting the TRK port on the
DDP2 faceplate (P1, D-type 9 pin male) to the Main Distribution Frame
(MDF) (P2, P3 D-type 15 pin males). The NTCK78AA is used for systems
not equipped with an I/O filter panel.
0 GND Shield Wire Bare P1-5 N/C
0 GND Shield Wire Bare P1-9 N/C
1 T- P R I 1 T X Trunk 1 Transmit Tip Black P1-6 P2-6
1 R-PRI1TX Trunk 1 Transmit Ring White P1-7 P2-7
1 T- P R I 1 R X Trunk 1 Receive Tip Black P1-2 P2-2
1 R-PRI1RX Trunk 1 Receive Ring Red P1-3 P2-3
1 GND Shield Wire Bare P1-5 N/C
1 GND Shield Wire Bare P1-9 N/C

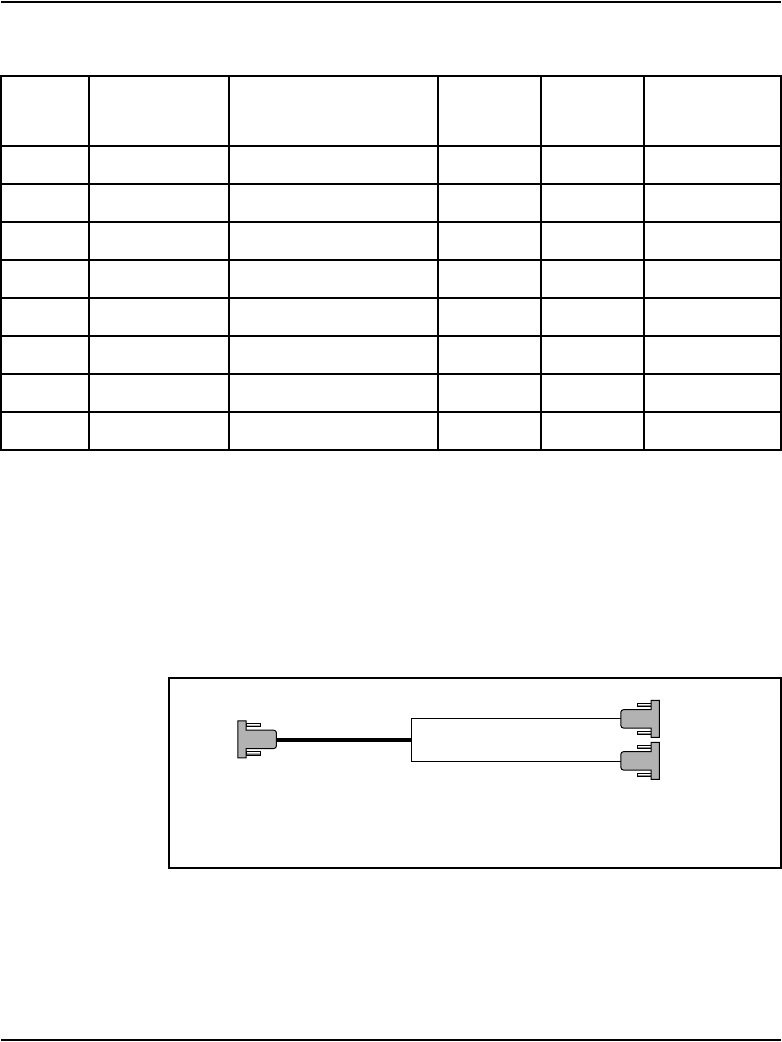

Figure 68
NTCK78AA
Table 118
NT8D7217 cable pins (Part 2 of 2)
Cable Name Description Color
DDP2
pins
I/O Panel
pins
553-7385
P1
P2
P3
D-type
15 pin, males
D-type
9 pin, males
