Additional Security
Torx security screws are available (as optional equipment
at extra cost) for securing both lower access panels to
washer and dryer bases. Order part number 62853.
A Torx bit, part number 282P4, is available (as optional
equipment at extra cost) for installing the Torx security
screws.
A Torx bit holder, part number 24161, is available (as
optional equipment at extra cost) to be used with the Torx
bit.
Washer Slide Extension
(Coin Slide Models Only)
Remove slide extension, shoulder screw, plastic boot,
actuator, actuator support, screws and lockwashers from
the accessories bag. Install slide extension as follows:
1. Unlock and open service door. Remove locking rod
holding coin slide to front of security cabinet.

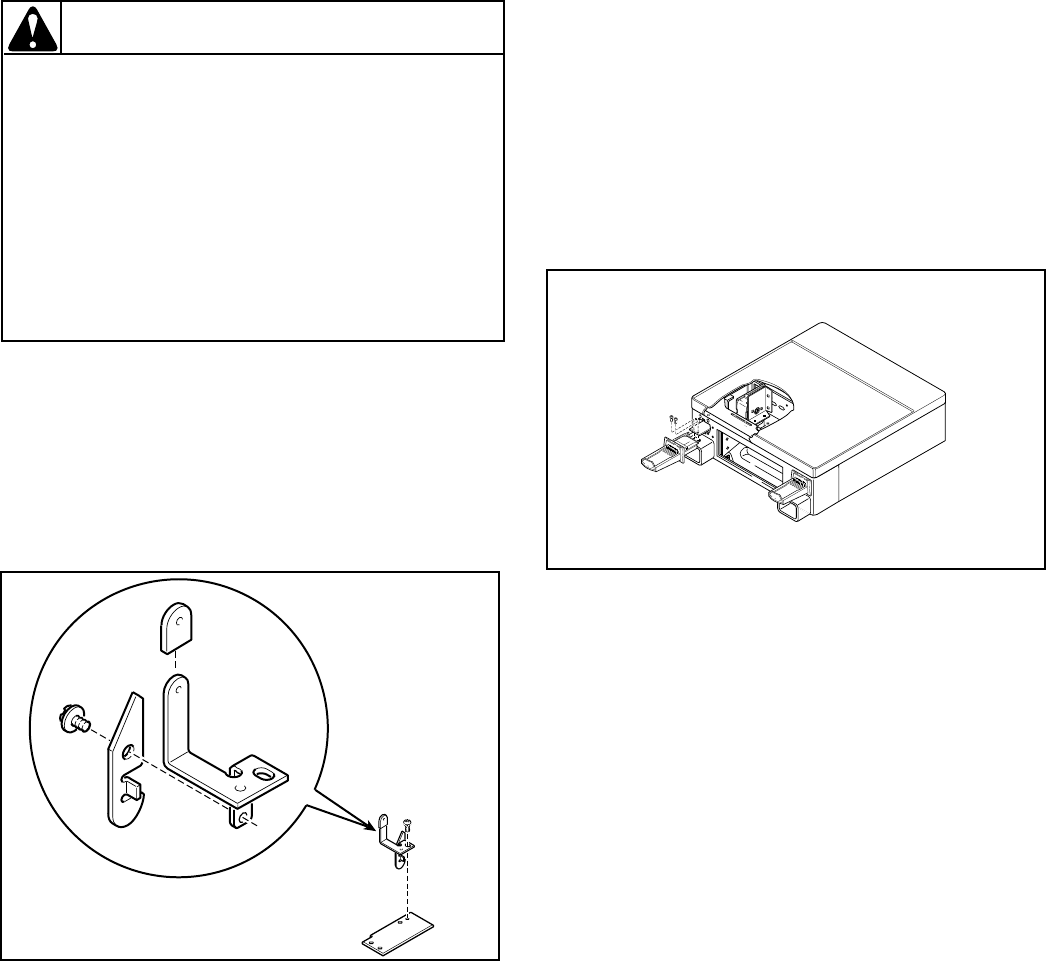

NOTE: Refer to following illustration for steps 2
through 4.
2. Assemble plastic boot (No. 36165) onto actuator
support (No. 685592).
3. Assemble actuator (No. 36164) to actuator support
(No. 685592) using shoulder screw (No. 36166).
4. Place actuator and support assembly onto slide
extension, and install screw and lockwasher
(No. 03950).
5. Install assembed slide extension through coin slide
opening of security cabinet by reaching through
service door opening.
6. Assemble slide extension (No. 685593) to top side of
coin slide using two screws and lockwashers
(No. 03950), and tighten firmly. See illustration
below.
7. Reinstall assembled coin slide in security cabinet.
Close and lock service door.
After slide extension has been installed, check washer
operation as follows:
1. Connect electrical power to washer.
NOTE: To determine if slide functions properly,
allow washer to complete its cycle, and for timer to
stop, before starting evaluation process.
2. Place required number of coins in slide. Push slide in
slowly and listen for coins to drop into coin drawer.
3. Push slide in a little farther and observe through
service door opening that actuator drops beyond
timer clutch. Continue pushing slide all the way in
and pull back. Confirm that the actuator will rotate
timer clutch and wash cycle starts.
NOTE: You must press Push-to-Start button to
initiate cycle after activation of slide.
. . .
. . .
To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the washer and
dryer before servicing.
• Never start the washer and dryer with any
guards/panels removed.
• Whenever ground wires are removed during
servicing, these ground wires must be
reconnected to ensure that the washer and
dryer are properly grounded.
