12 504509
Step 5: (Electric Dryer ONLY)
Connect Electrical Plug
For further assistance, refer to Section on Electrical
Requirements.
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three conductor power supply cord
kit rated 240 Volts (minimum) 30 Amperes and
labeled as suitable for use in a clothes dryer.
NOTE: For more detailed information on connecting
three-wire or four-wire plugs, refer to Section on
Electric Dryer Electrical Requirements.
NOTE: Four-wire cord is required for mobile homes
or where codes do not permit grounding through
neutral.

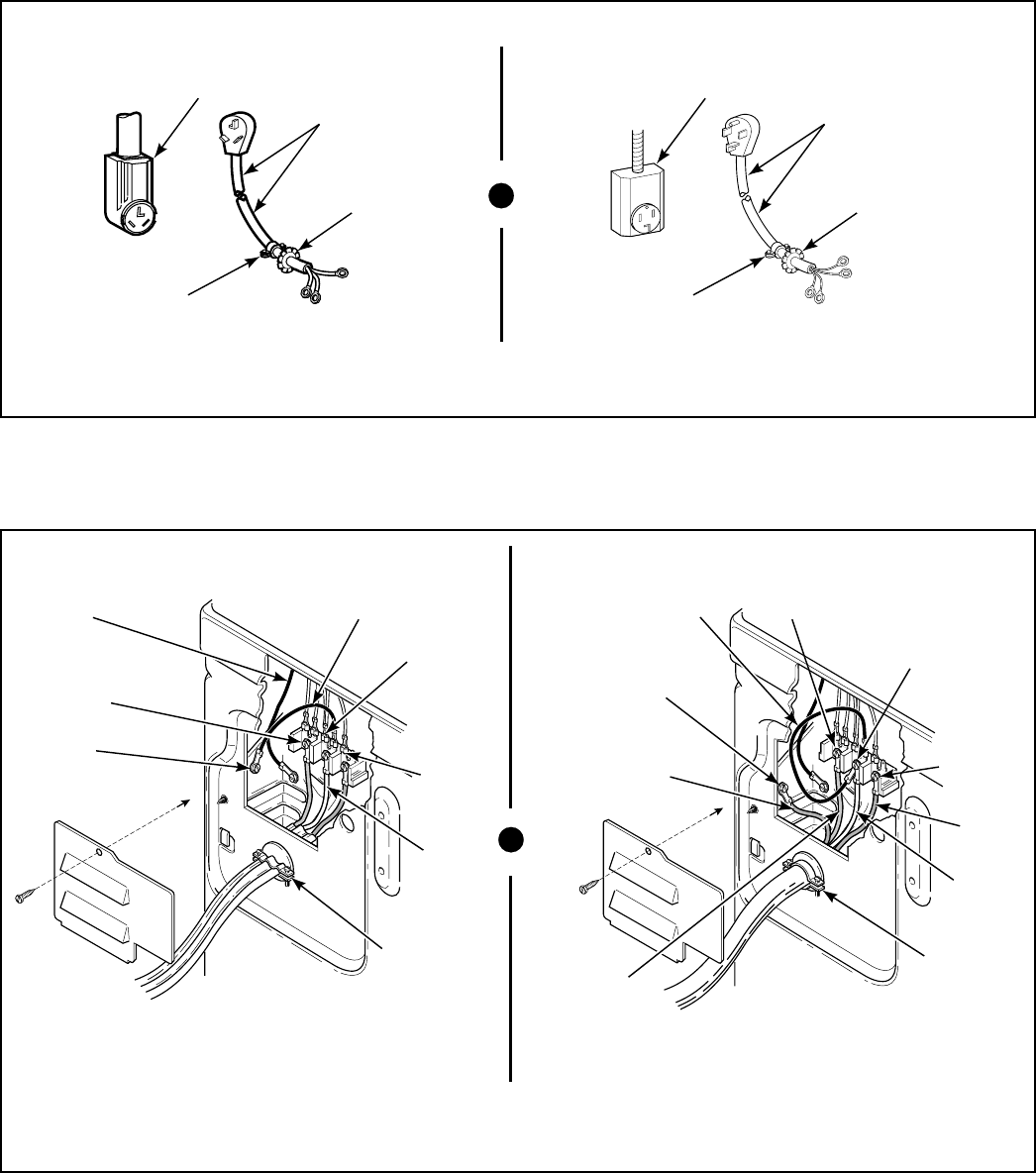

STRAIN
RELIEF
NUT
TYPICAL
THREE-WIRE
RECEPTACLE
POWER CORD
- NOT SUPPLIED
WITH DRYER
(Three-Wire)
STRAIN
RELIEF
D275IE0H
Three Wire
STRAIN
RELIEF
NUT
TYPICAL
FOUR-WIRE
RECEPTACLE
STRAIN
RELIEF
D006IE0E
POWER CORD
- NOT SUPPLIED
WITH DRYER
(Four-Wire)
Four Wire
D436IE1A
WHITE
WIRE
(NEUTRAL)
GROUND
SCREW
NEUTRAL
TERMINAL
“L1”
TERMINAL
BLACK
WIRE
GROUND
WIRE
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
GROUND
WIRE
“L2”
TERMINAL
RED
WIRE
Four-Wire Connection
D435IE1A
CENTER
WIRE
(NEUTRAL)
STRAIN
RELIEF
(NOT SUPPLIED
WITH DRYER)
NEUTRAL
TERMINAL
GROUND
WIRE
“L2”
TERMINAL
“L1”
TERMINAL
GROUND
SCREW
GROUND
TO NEUTRAL
WIRE
Three-Wire Connection
NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate dryer with
access cover removed.
