Cooking Updates
All Cooking Products with Electronic Oven Controls
“F9 E0” Error Code
Concern: “F9E0” error code appearing on oven control.

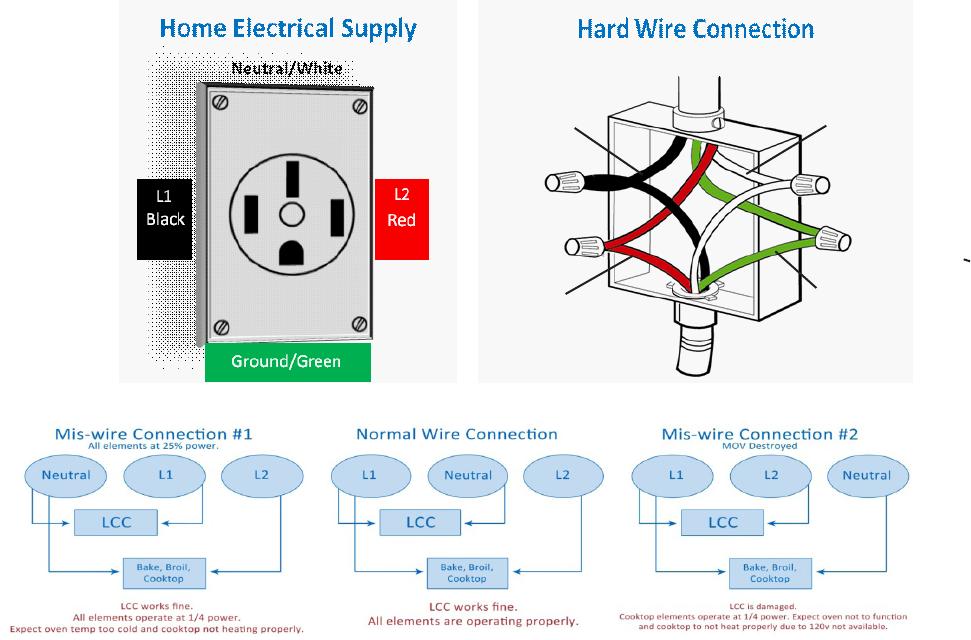

Cause: This code will most oen indicate that the appliance is wired incorrectly at the
home electrical supply, or at the hard wire connecon. Producon of controls
with the “F9 E0” error code started February 2011 on all electric low end of the
model line controls.
This error code will usually occur during installaon, but it could also display (at a later point
in the appliance life) if a bad bake element, or any of the electrical connecons within the
circuit shown on the following page should malfuncon, become loose, or disconnected.
The highlighted circuit from L1 through the Bake and Double Line Break relays, and the bake
element to the L2 side of the line is used whenever the unit is plugged in to verify a 240 volt,
uninterrupted circuit. If this circuit is not operang correctly, an error code F9 E0 will appear.
L2
Red
Ground
Green
Neutral
White
L1
Black
