16 INSTALLATION AND MAINTENANCE MANUAL PUBLICATION DATE 03/02 504 766
22 kg / 50 lbs 33 kg / 80 lbs 40 kg /100 lbs 55 kg / 125 lbs
BOLT
M10 x 160 mm M16 x 160 mm
TIGHTENING MOMENT
49 Nm / 36 lbf.ft 210 Nm / 155 lbf.ft
Tab.4.3.B

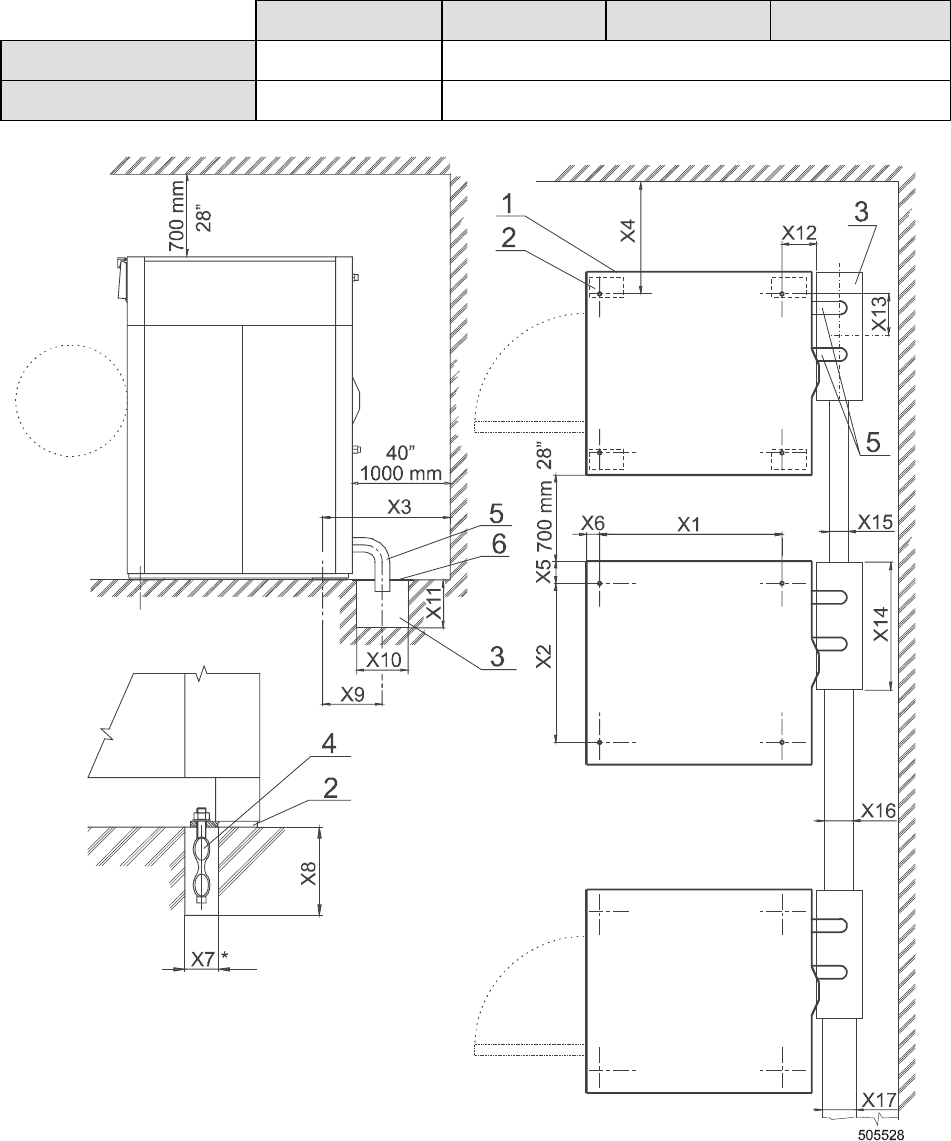

Fig.4.3.A Distances between washing machines, walls and between other machines
and optional design of the waste channel
1. Machine line of contour
2. Machine footing
3. Waste sump
4. Anchoring bolt
5. Draining elbow
6. Cover of waste sump
