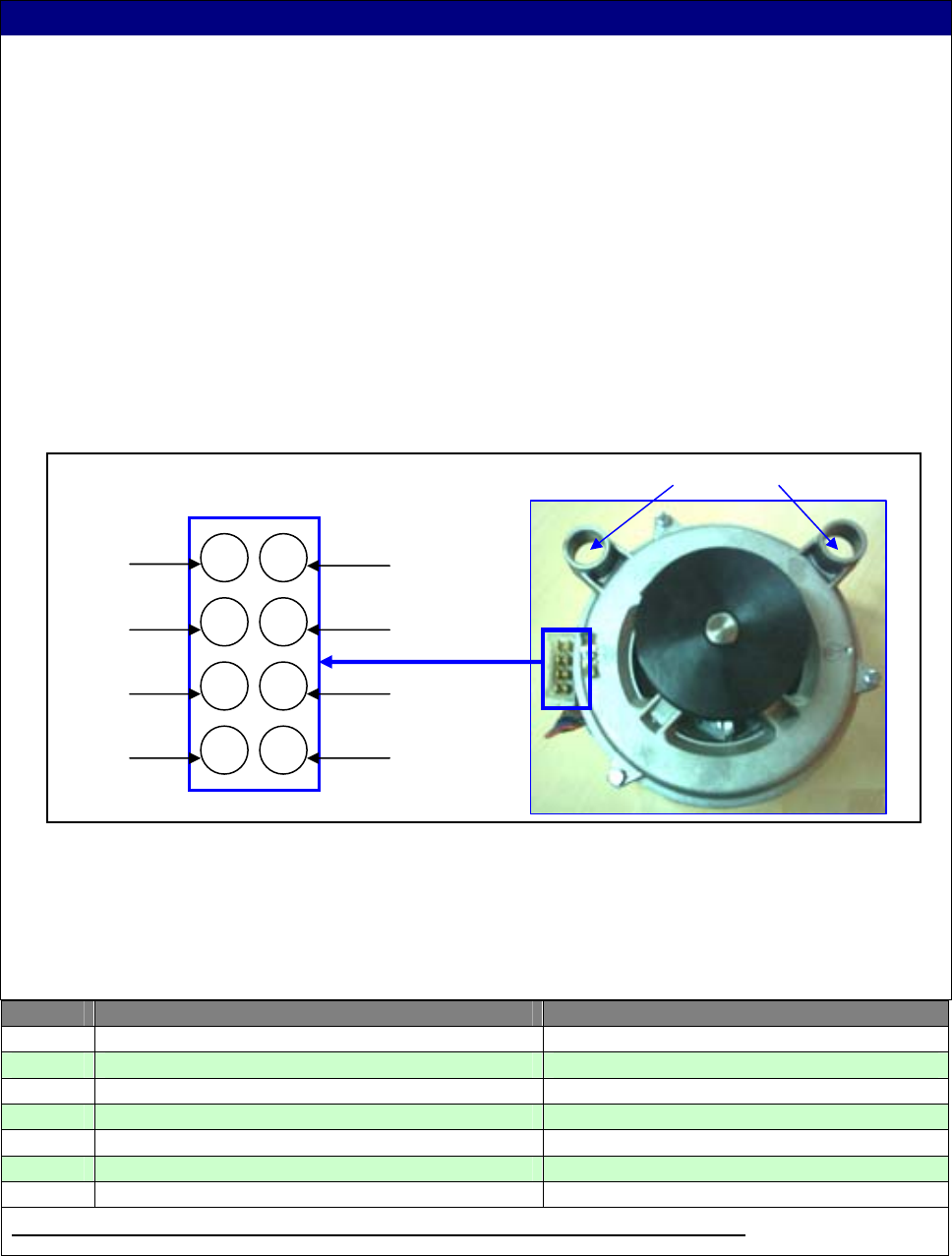

17) Main Motor (50751)
Replacement Procedure:
▪ Unplug the unit.
▪ Make sure that there is no water in the unit.
▪ Remove the back panel (3 screws at the back)
▪ Remove the belt.
▪ Tilt the unit towards the left and carefully lay down the unit on the side.
▪ Unfix the four leveling legs and remove the bottom panel.
▪ The motor is supported with 3 bolts, unfix the same and replace the motor.
▪ Do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.
Wiring: Main Motor
Testing Procedure:
▪ Cold Test:
1) Check the resistance between the following terminals, if the results match near about,
the motor is fine.
Sr. No Terminals Resistance
1 1 & 2 7.8 – 8.6
2 1 & 6 2.8 – 3.4
3 2 & 6 10.6 – 12.0
4 3 & 5 9.5 – 9.8
5 5 & 7 9.5 – 9.8
6 3 & 7 13.0 – 13.6
7 4 & 8 29.4 – 31.0
e
Please Note: Adjust the belt tension after replacing the motor.
4 8
7 3
6 2
5 1
M2
M5 M1
M6
M7 M3
M4 M8
Holes for Bolts
