7) Dry Timer (50728)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ Pull out the soap dispenser, plastic washer knob and dryer knob.
▪ Remove the control panel. (3 Screws)
▪ Unfix the two screws that hold the dry timer and take out the timer.
▪ Pull out all the wires on the dry timer and replace the same.
▪ Fix all the parts back by following the reverse procedure.

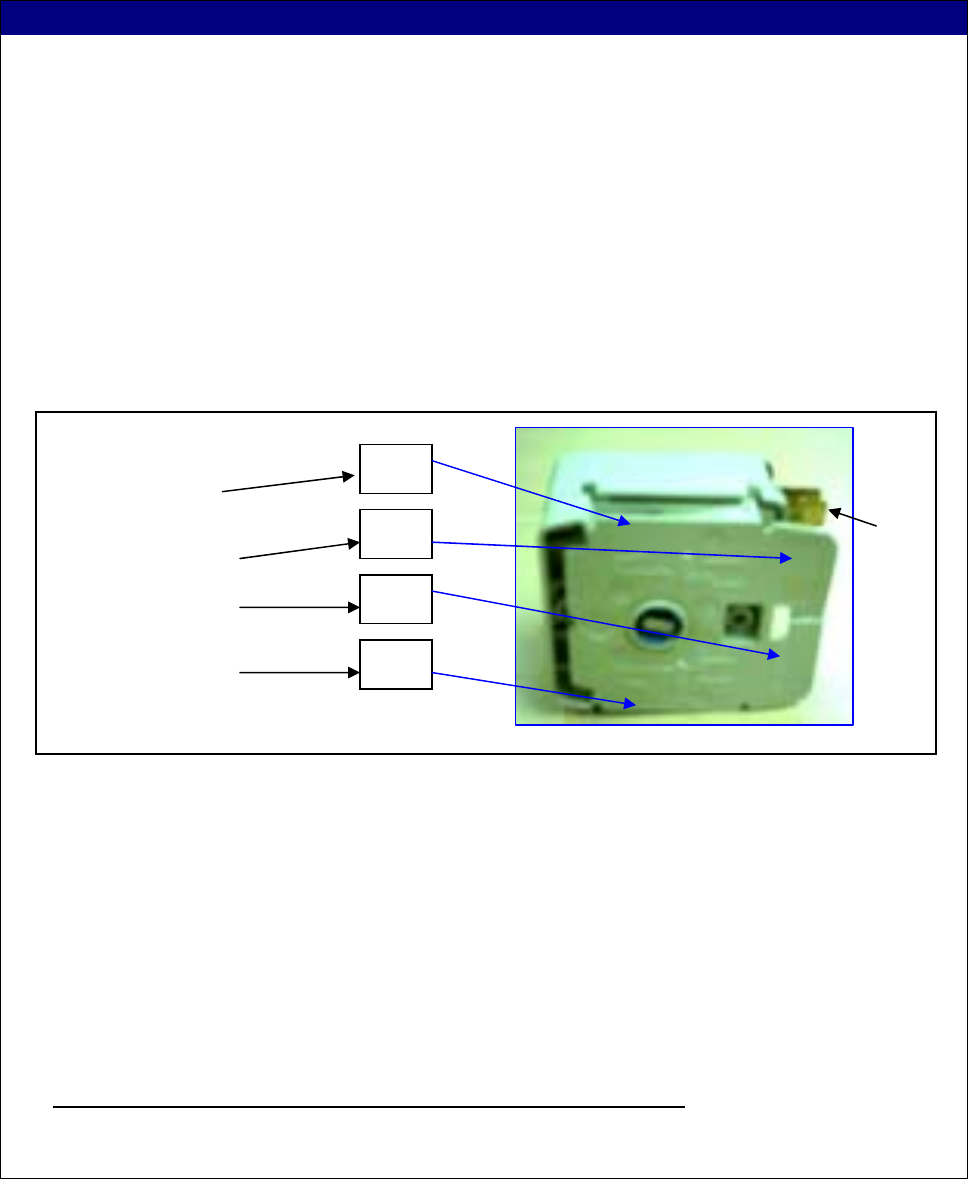

Wiring: Dry Timer
Testing Procedure:
▪ Cold Test:
1) Turn the dryer knob to 30 and check for continuity between terminals a & a1, b & b1.
2) Check the resistance between TAC and a terminals, it should not be more than 2300
ohm.
e
Please Note: The side with b & b1 should be on the top.
TAC
b1
a1
a
b
TAB
TAB1
TAA1
TAA
