11) Thermostat (00808)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ The fusible link is located on the heater housing as shown in the figure.
▪ There is a small fuse inside the covering held by the clamp crewed on the housing.
▪ Unfix the screw and replace the same and do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.

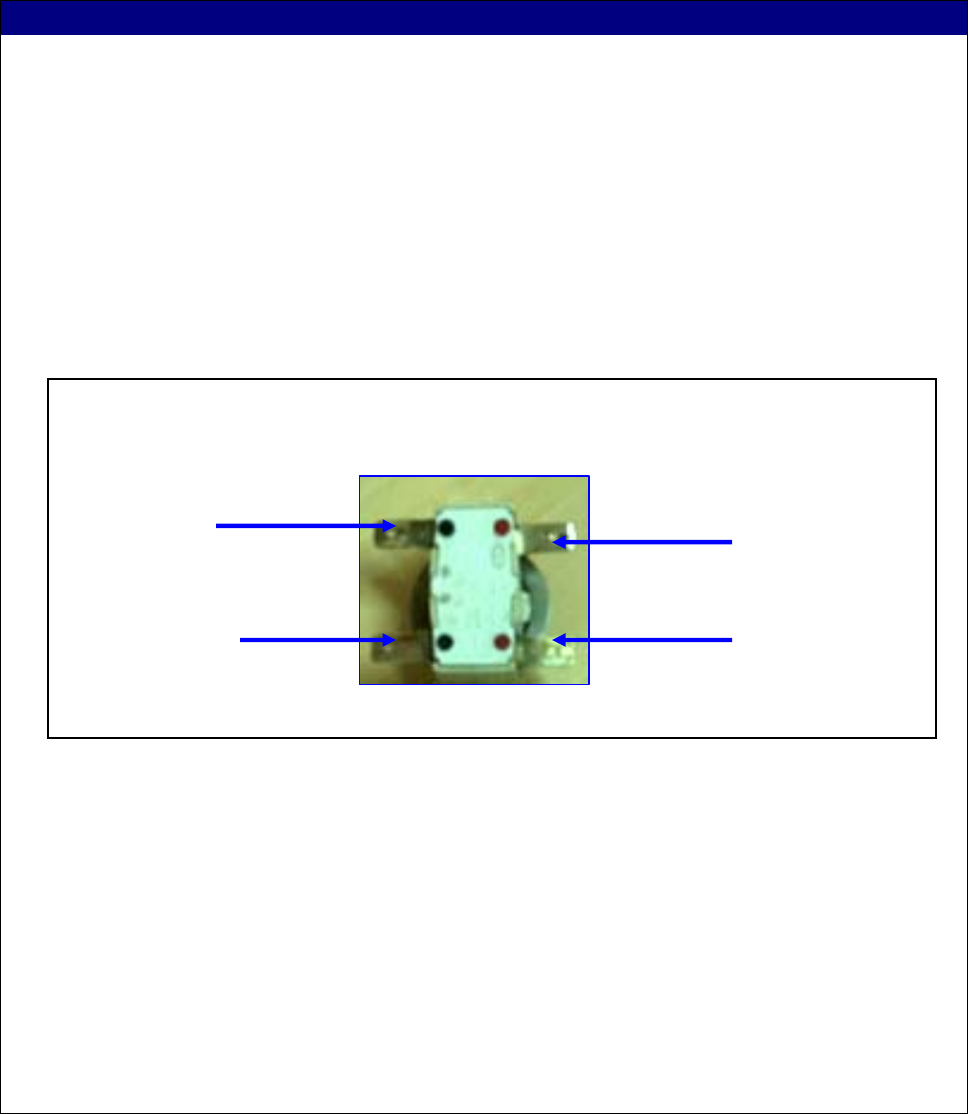

Wiring: Thermostat
Testing Procedure:
▪ Cold Test:
1) Check the continuity between the two terminals with black dots and the two terminals
with the red dots, if there is continuity the thermostat is good.
FE
FD
FEX
FDX
