8) Half Load Switch (51799)
Replacement Procedure:
▪ Unplug the unit.
▪ Remove the top panel (Two screws behind and slide back)
▪ Pull out the soap dispenser, plastic washer knob and dryer knob.
▪ Remove the control panel. (3 Screws)
▪ Pull out the plastic switch cover for the half load switch.
▪ Pull out the half load switch by matching the grooves in the panel pushing the switch
towards the back.
▪ Replace with the new switch and do the wiring as before / below.
▪ Fix all the parts back by following the reverse procedure.

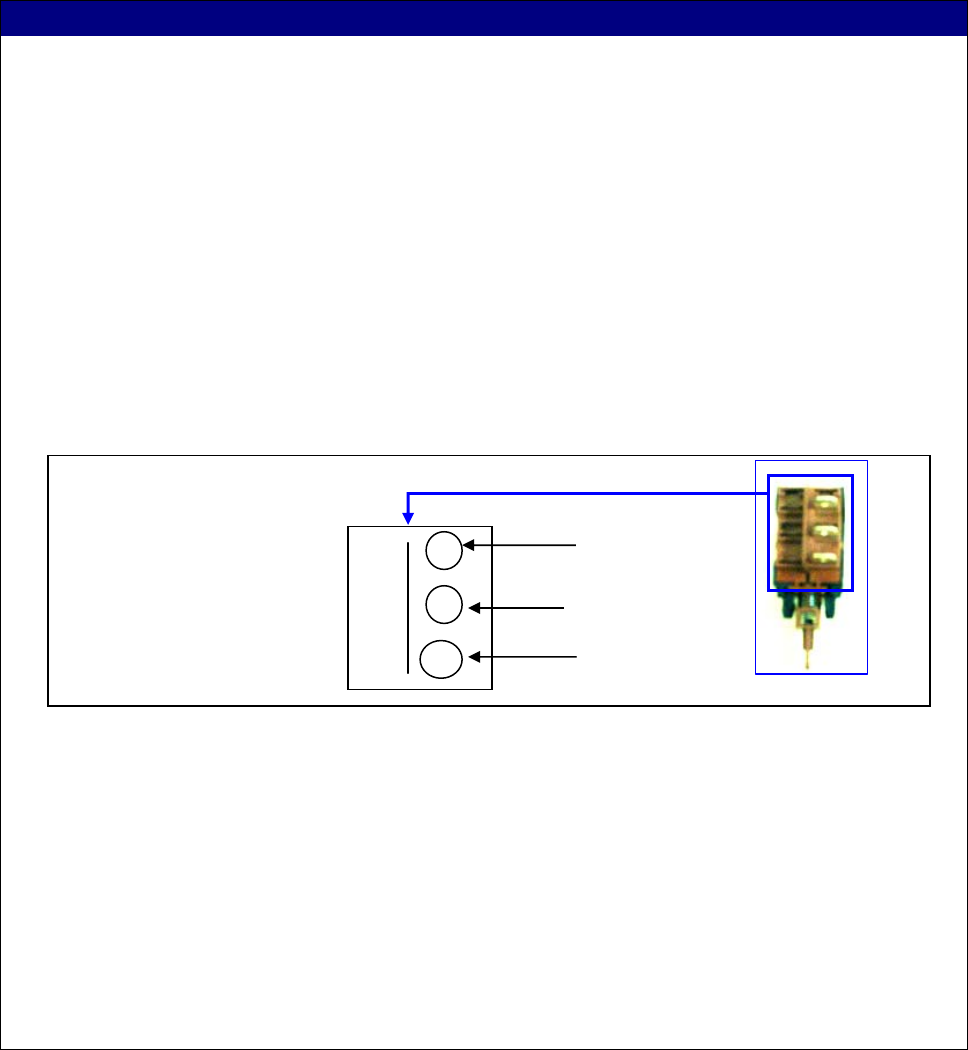

Wiring: Half Load switch - bottom view
Testing Procedure:
▪ Cold Test:
1) When the half load button is not pushed in – There will be continuity between the
terminals 4 & 6.
2) When the half load button is pushed in – There will be continuity between the terminals
4 & 2.
122
124
126
2
4
6
