2-20
MS-7031 Micro ATX Mainboard

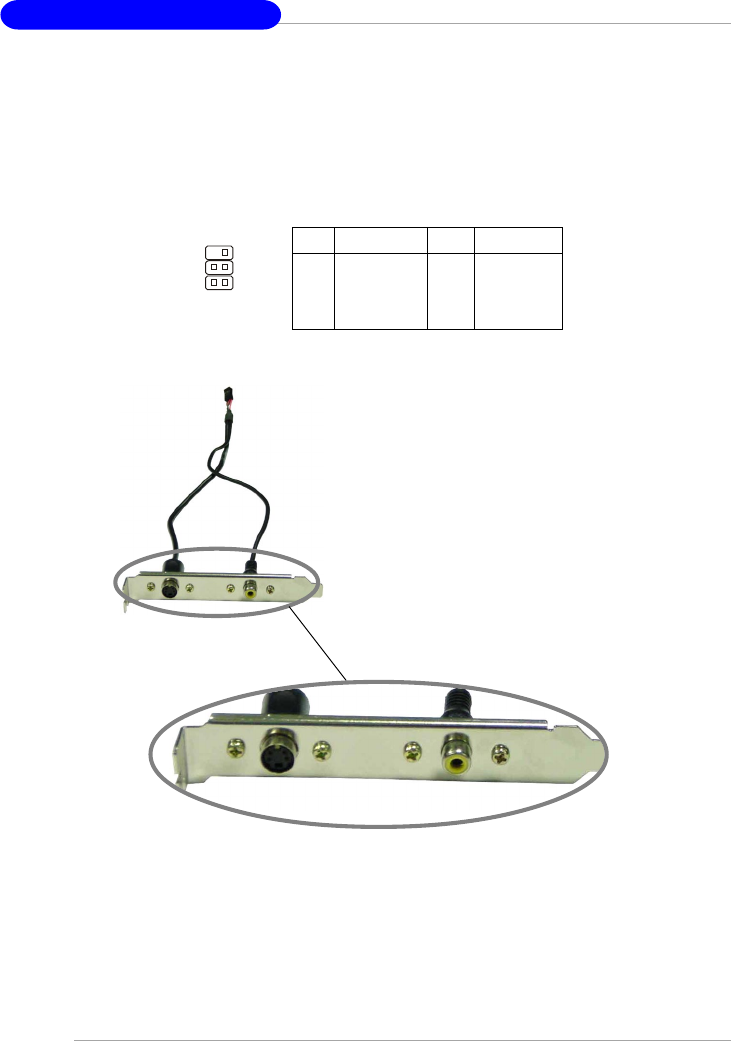

TV-Out Connector: JTV1 (Optional)
The mainboard optionally provides a TV-Out connector for you to attach a TV-
Out bracket. The TV-Out bracket offers two types of TV-Out connectors: S-Video
and RCA Composite connector. Select the appropriate one to connect to the televi-
sion and the television will be able to display the PC’s information.
Pin Description Pin Description
1 GND 4 CVBS
2 Yout 5 GND
3 Cout
JTV1 Pin Definition
3
JTV1
1
5
4
Optional TV-Out Bracket
TV-Out Connector
(S-Video)
TV-Out Connector
(RCA Composite)
