Hardware Setup
IEEE 1394 Connector: J1394_1 (Optional)
The mainboard provides one 1394 pin header that allows you to connect
optional IEEE 1394 bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
J1394_1
9
2
10
1

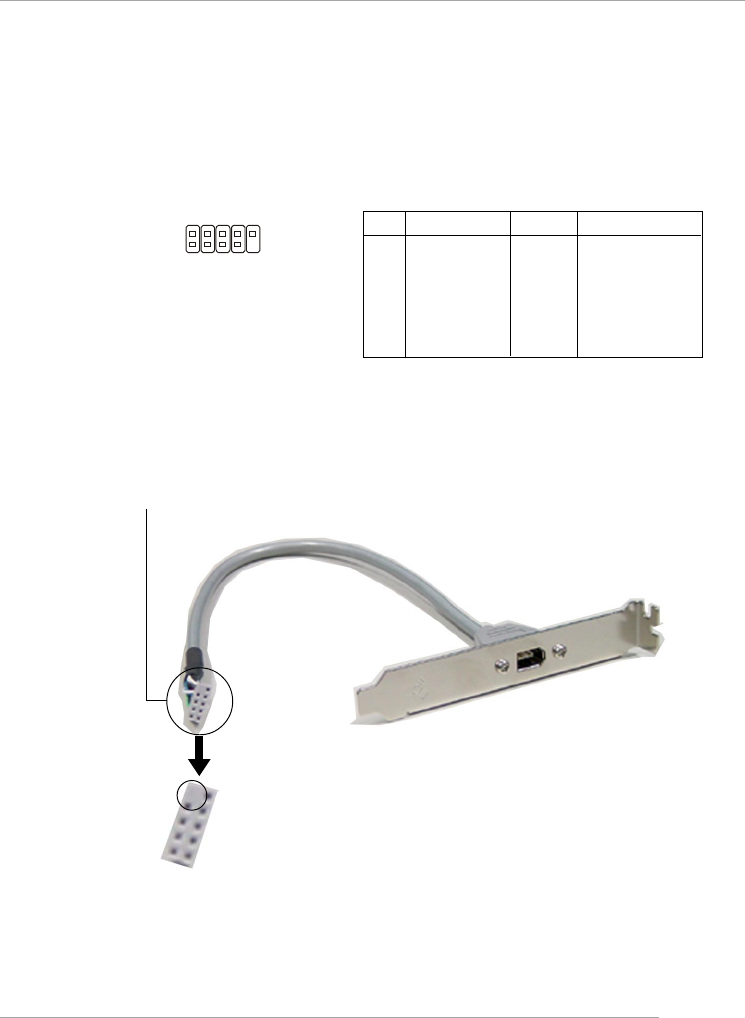

How to attach the IEEE 1394 Port:
Foolproof
design
Connected to J1394_1
IEEE1394 Bracket (Optional)
