MS-7031 Micro ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case, modem,
LAN, USB Ports and CPU/System/Power Supply FAN.

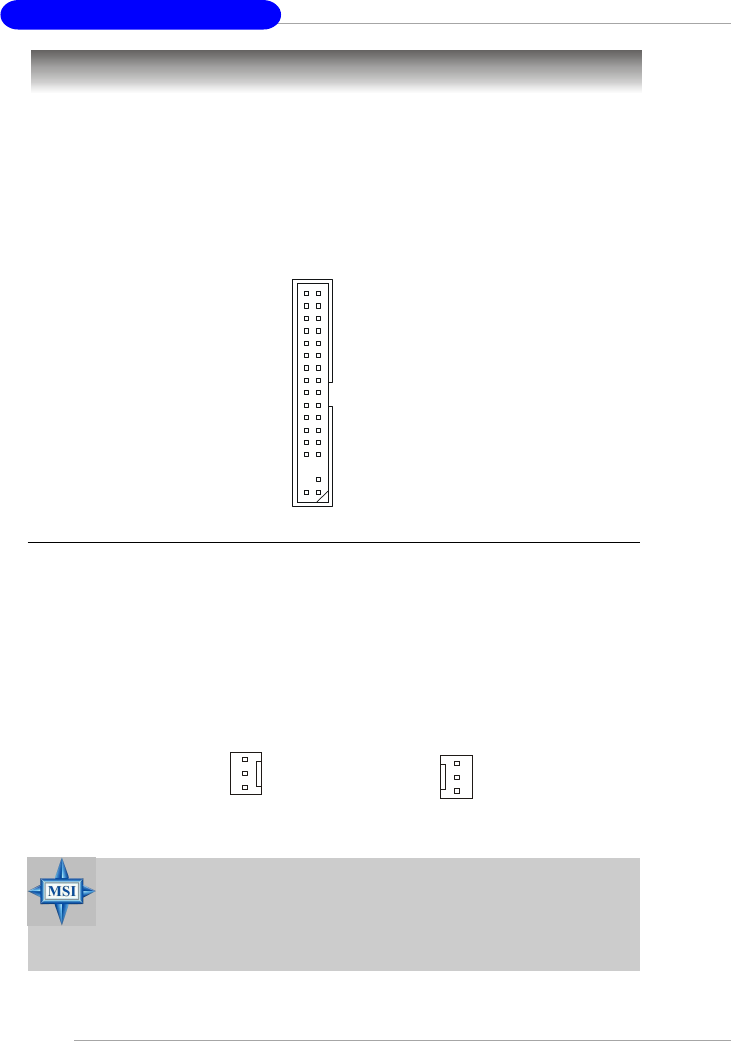

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: CPUFAN1/SYSFAN1
The CPUFAN1 (processor fan), SYSFAN1 (system fan) support system cool-
ing fan with +12V. It supports three-pin head connector. When connecting the wire
to the connectors, always take note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to GND. If
the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.
SYSFAN1
SENSOR
+12V
GND
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. Please refer to the recommended CPU fans at Intel
®
official website.
3. If you want to overclock the CPU, it is strongly recommended to use
a multi-direction fan for better heatsink.
CPUFAN1
SENSOR
+12V
GND
