Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 7
Step 4: Connect Dryer Exhaust System
For further assistance, refer to sections on Location
Requirements and Dryer Exhaust Requirements.
● DO NOT use plastic or thin foil ducting.
● Locate unit so exhaust duct is as short as
possible.
● Be certain old ducts are cleaned before installing
your new dryer.
● Use 102 mm (4 inch) diameter rigid or flexible
metal duct.
● The male end of each section of duct must point
away from the dryer.
● Use as few elbows as possible.
● Use duct tape or pop-rivets on all duct joints.
● Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
● Install backdraft dampers in multi-dryer
installations.
● Failure to exhaust dryer properly will void
warranty.
Figure 8
NOTE: Venting materials are not supplied with the
unit (obtain locally).
SWD568N

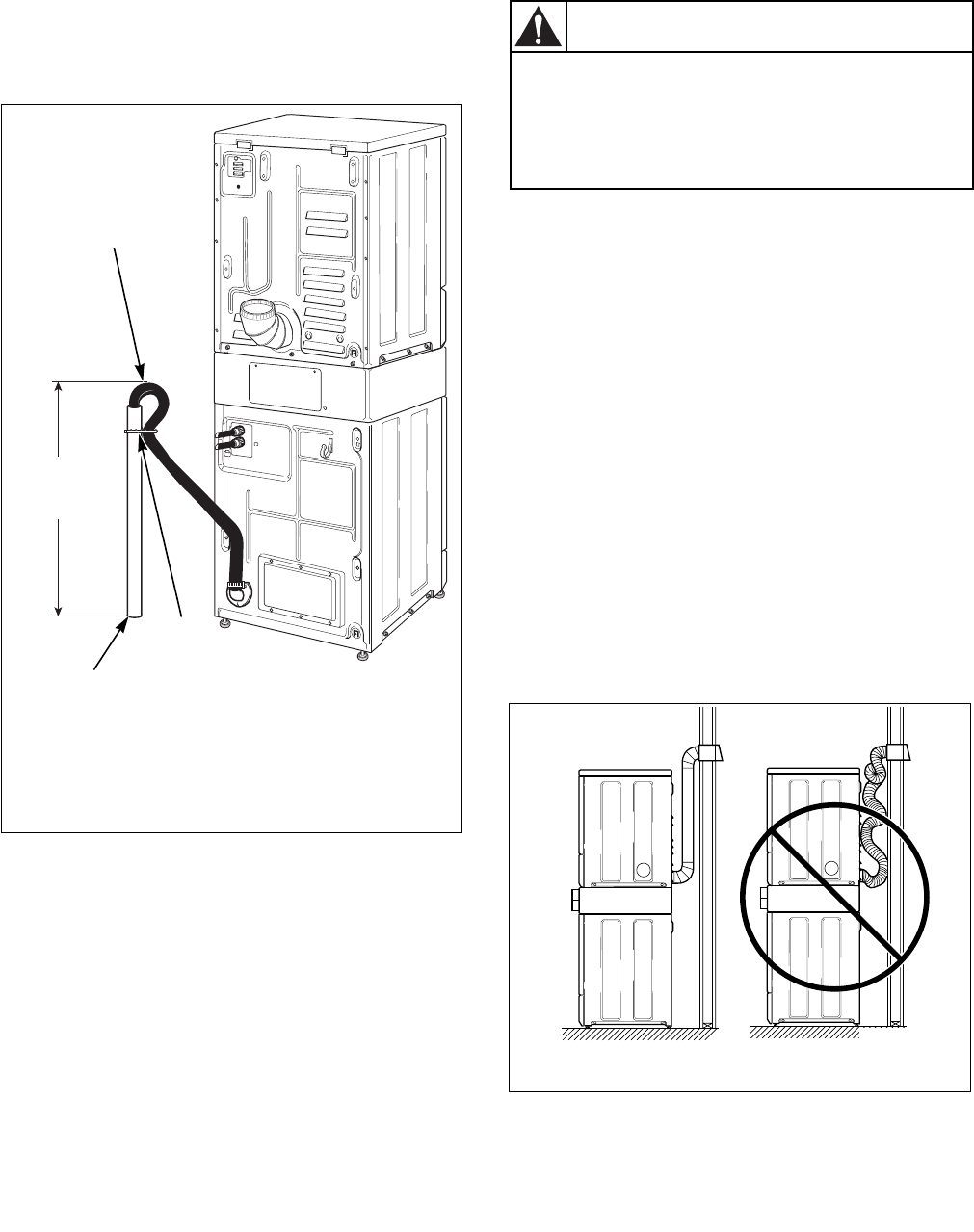

1 Drain Hose
2 Standpipe – 40 mm (1-1/2 in.) or 50.8 mm
(2 in.)
3 Beaded Tie-Down Strap
1
3
2
610 TO 914.4 mm
(24 TO 36 in.)
RECOMMENDED
HEIGHT
H312I
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
WARNING
H312I
DO DON'T
