Installation
802031
14
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

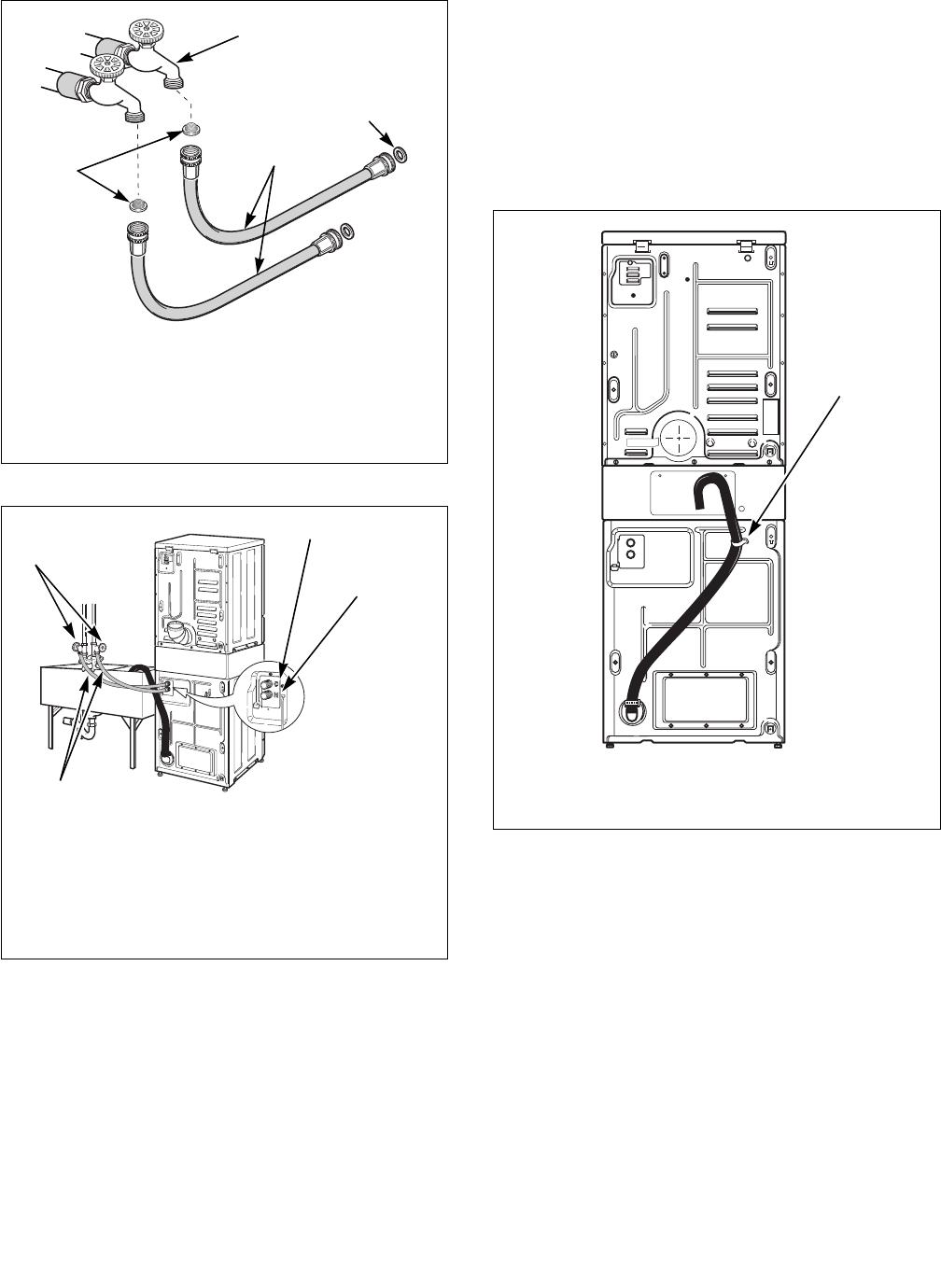

Figure 4
Figure 5
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 32 mm (1-1/4 inch) outside
diameter drain hose.
Figure 6
TLW1976N
1 Water Faucet
2 Fill Hoses
3 Plain Rubber Washer
4 Filter Screens
SWD566N
1 Water Supply Faucets
2 Cold Water Connection
3 Hot Water Connection
4 Water Fill Hoses
HOT
COLD
1
2
3
4
SWD566N
1
2
3
4
WATER MIXING
VALVE
SWD567N
1 Shipping Tape
1
