SC743 Chassis Manual
D-8
REV 1.01
SASM35TQ
R
S
UPER
REV 1.01
SASM35TQ
R
S UPER
JP18
JP29
*The buzzer sound indicates that a condition requiring immediate attention has
occurred.
The buzzer alarm is triggered by the following conditions:
Hard drive failure1.
Fan failure2.
System temperature over 45ยบ Celsius.3.
Jumper Settings
Jumper Jumper Settings Note
JP18
Open: Enabled
Closed: Disabled
Buzzer Reset*
JP29
Open: Default
Closed: Reset
MG9072 Chip Reset
Buzzer and Chip Reset Jumper Settings

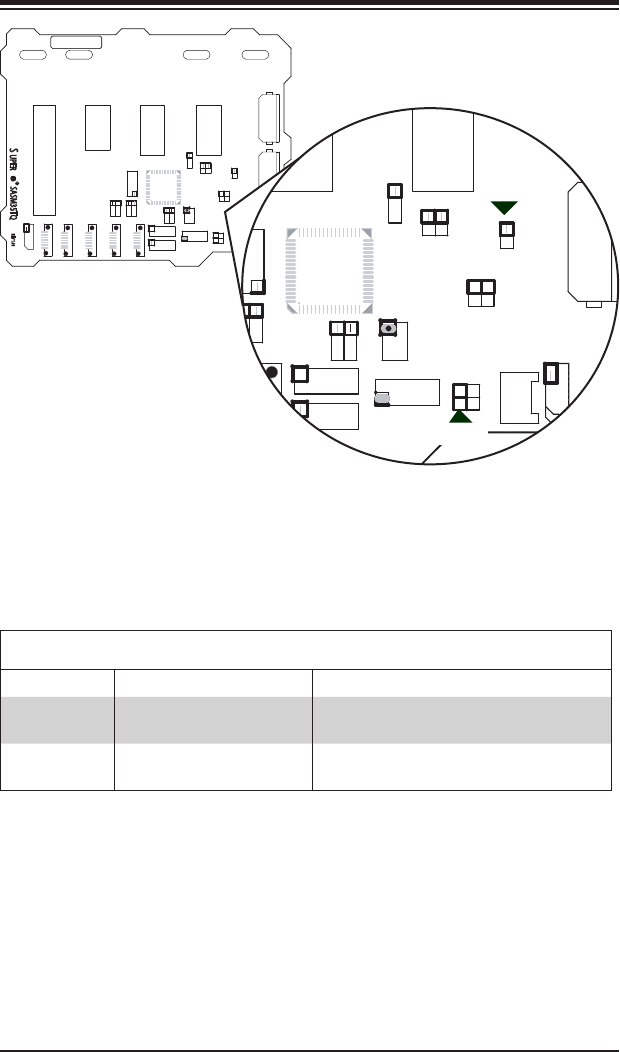

Figure D-3: Buzzer and Chip Reset Jumpers
