Step 9: (Washer Only) Remove the Shock
Sleeves and Shipping Brace
Remove front access panel by removing the two
screws at the bottom of the panel.
Remove the five bolts and lockwashers from shipping
brace with 9/16 inch wrench and remove brace. Refer
to Figure 26. Four bolts are located on the unit base
and one is holding the brace to the weight. Remove all
four shock sleeves by pulling on the yellow rope.
Refer to Figure 26.
IMPORTANT: The shipping brace, bolts,
lockwashers and shock sleeves should be saved and
MUST be reinstalled whenever the unit is moved
more than 4 feet (1.22 m). Do not lift or transport
unit from front or without shipping materials
installed. Refer to the Maintenance section for
proper instructions on reinstalling the shipping
materials.
Remove label from front side of front access panel and
place on backside of front access panel for future
reference.
Store the shipping materials in the accessories bag.
Save materials for use whenever the unit is moved.
Reinstall front access panel.
IMPORTANT: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has removed. Shock absorbers may separate
and damage to unit may result. For leveling
purposes, the unit may be tilted a maximum of
6 inches (152.4 mm) in any direction.
Step 10: Wipe Out Inside of Washer Drum
and Dryer Drum
Before using the washer and dryer for the first time,
use an all-purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping dust
from inside the drums.
Figure 27
Figure 28
FLW2124N

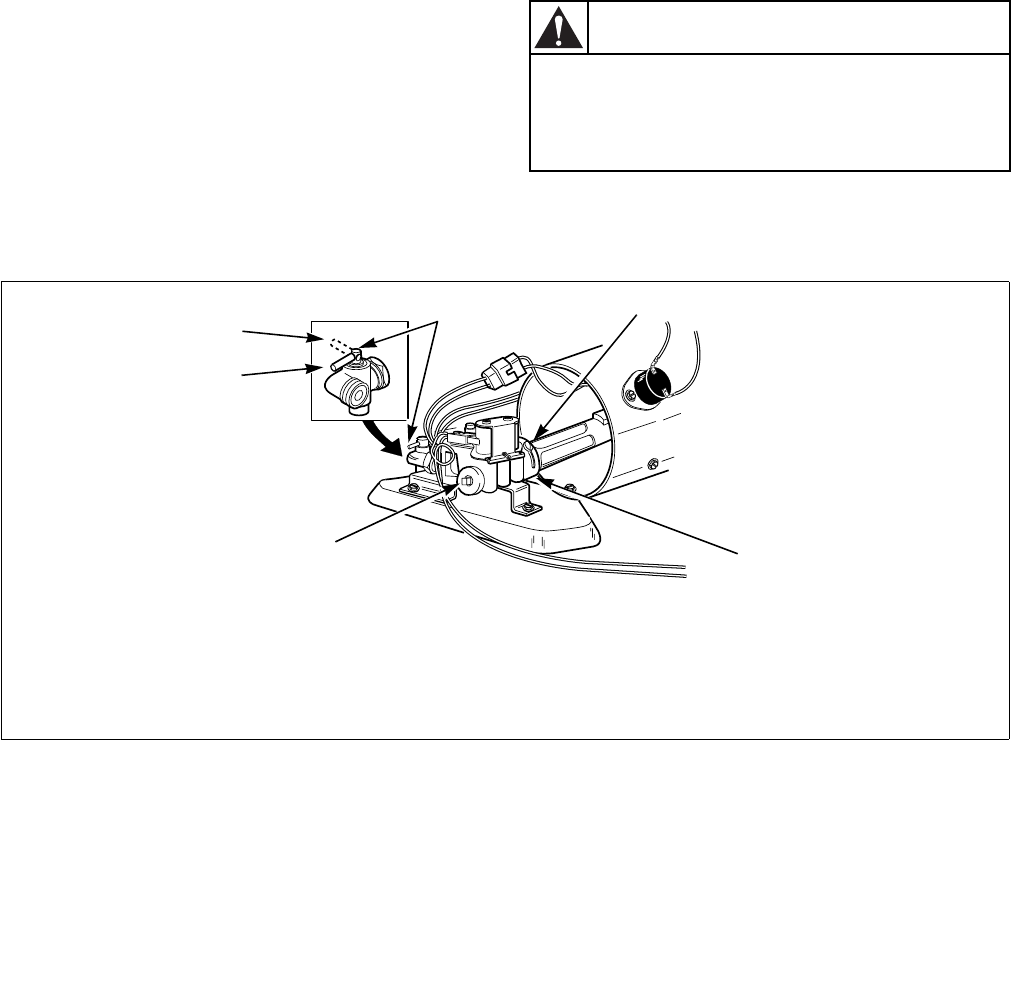

1 Shock Sleeves
2 Motor Mount
3 Hooked End of Shipping Brace
4 Bolts and Lockwashers
Figure 26
FLW2124N
1
4
3
2
