Programming
F232088
22
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. The even-numbered side of the program timer
can be configured with jumpers to adjust the
rinse temperature or to change the water level for
the wash step. Either or both even-side jumper
configurations may be used in conjunction with
any of the 11 permissible odd-side jumper
combinations. See Figure 13.

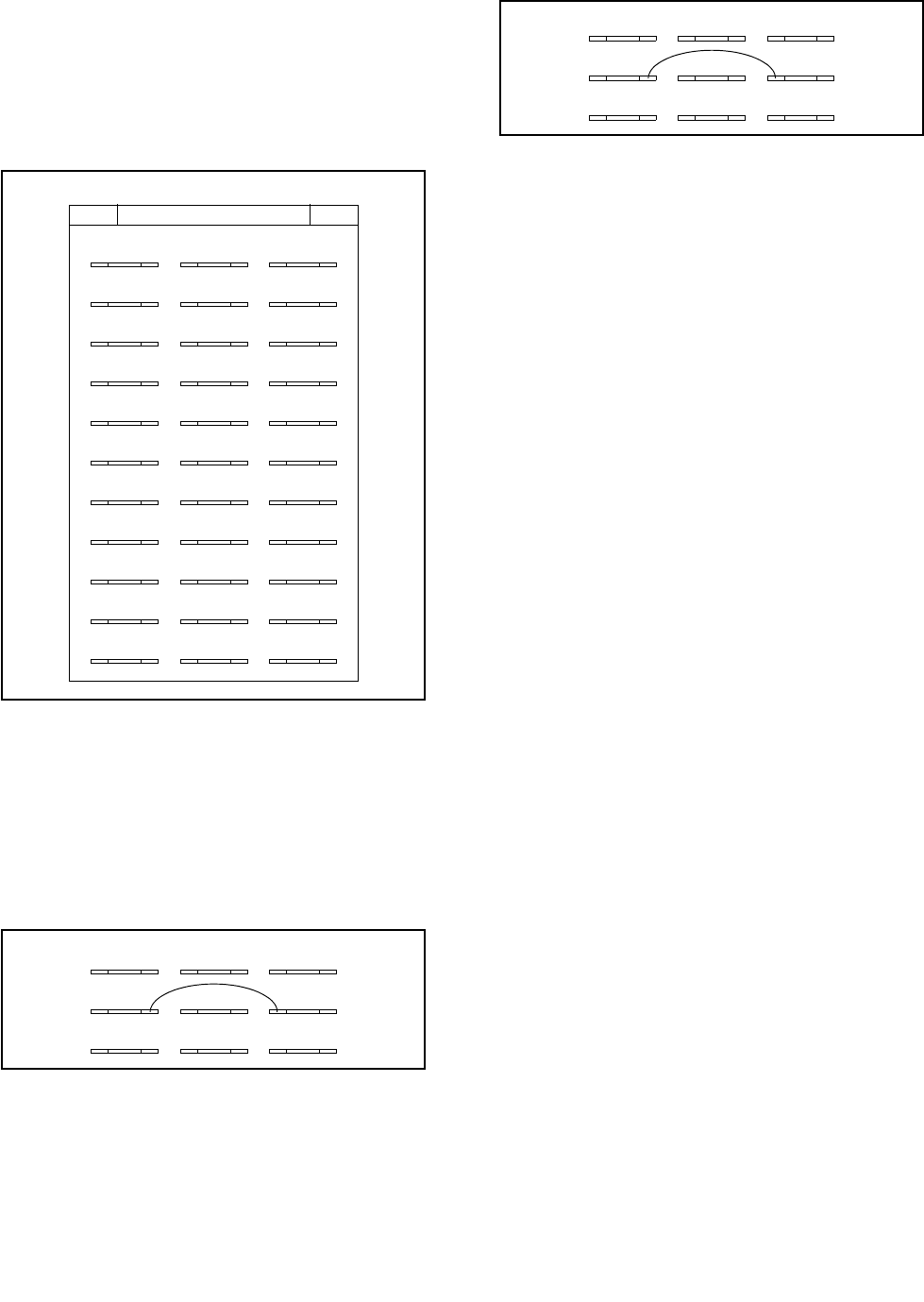

Figure 16
Figure 17 and Figure 18 illustrate the different
options available.
2a to 2b
This jumper configuration changes the fill
temperature for the rinses from cold to warm for
all cycles. See Figure 17.
Figure 17
10a to 10b
This jumper configuration changes the water
level for the wash segment from low to high for
all cycles. See Figure 18.
Figure 18
NOTE: This jumper configuration will cause the
timer to advance once low water level is reached.
The fill valves will remain open until high water
level is reached.
8. Replace the timer bracket screws if they were
removed in step 5.
9. Replace the control module cover and mounting
screws.
10. Reconnect power to the machine.
0b 0 0a
2b 2 2a
4b 4 4a
6b 6 6a
8b 8 8a
10b 10 10a
12b 12 12a
14b 14 14a
16b 16 16a
18b 18 18a
20b 20 20a
0b 0 0a
2b 2 2a
4b 4 4a
8b 8 8a
10b 10 10a
12b 12 12a
