Display Indications

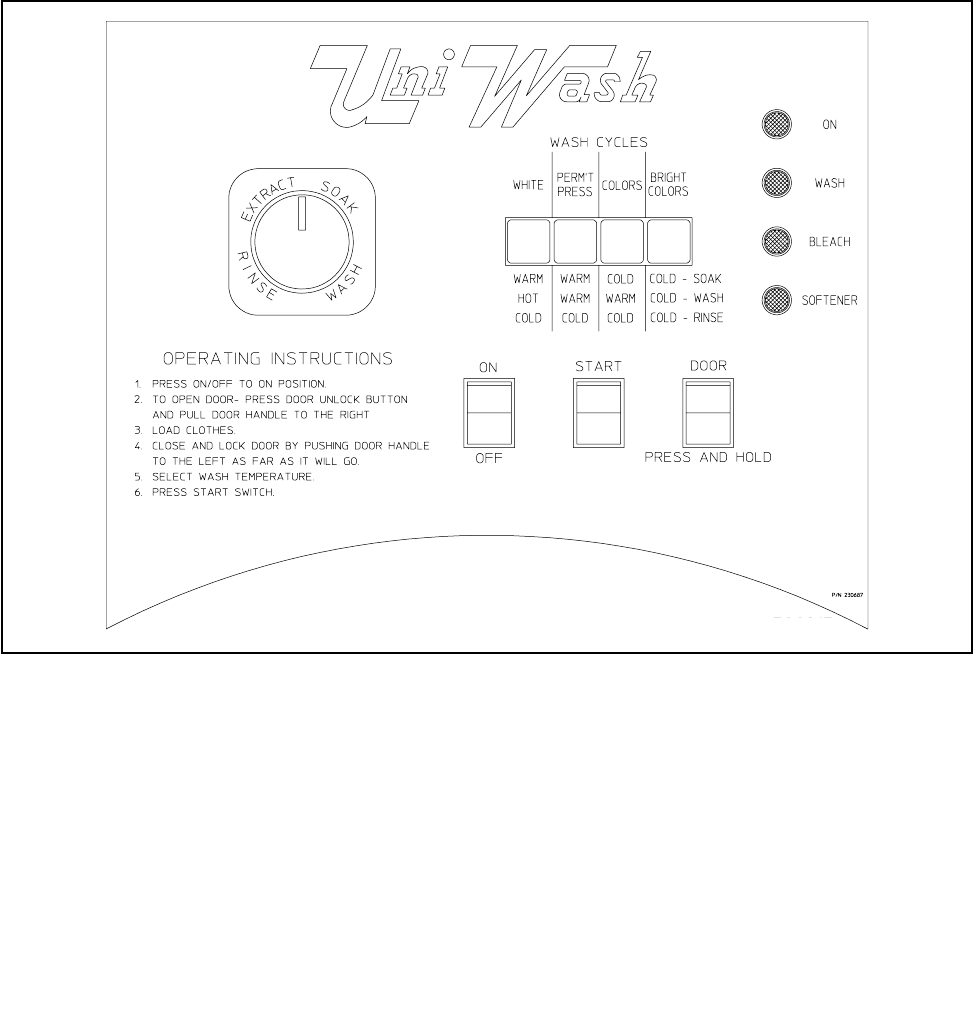

Figure 2 shows the control panel for mechanical timer-
controlled machines.
The red light labeled “ON” on the control panel
illuminates when a cycle is started and will stay
illuminated until the completion of the cycle.
The amber light labeled “BLEACH” on the control
module illuminates at the beginning of the wash step,
once water level is reached (and cycle temperature has
been reached on auxiliary heat models). This indicates
when the machine is flushing supply dispenser
compartment 3.
The amber light labeled “WASH” on the control
module illuminates during fill, heat, and agitation
steps.
The amber light labeled “SOFTENER” on the control
module illuminates at the beginning of the third rinse
step. This indicates when the machine is flushing
supply dispenser compartments 4 and 5.
The cycle indicator dial on the control module displays
the current cycle step.
The depressed push button on the cycle selector switch
indicates the currently selected cycle.
Figure 2
EC001F
