Programming
F232088
20
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table 1
5. If access to the odd-numbered side of the timer is
limited, remove the timer bracket mounting
screws and rotate the timer.
6. Install or remove jumpers to achieve the desired
cycle time. Figure 5 through Figure 15 illustrate
the permissible jumper combinations.
NOTE: Do not remove the cover from the
mechanical timer. Removing this cover will void the
warranty.
No Jumpers Installed on the Board
Removing all the jumpers extends the cycle time,
making it as long as possible. See Figure 5.
Figure 5
1a to 3a
This jumper configuration shortens the wash step
from 8 minutes to 4 minutes. See Figure 6.
Figure 6
1a to 3a to 3b
This configuration eliminates the prewash step
and shortens the wash step from 8 minutes to 4
minutes. See Figure 7.
Figure 7

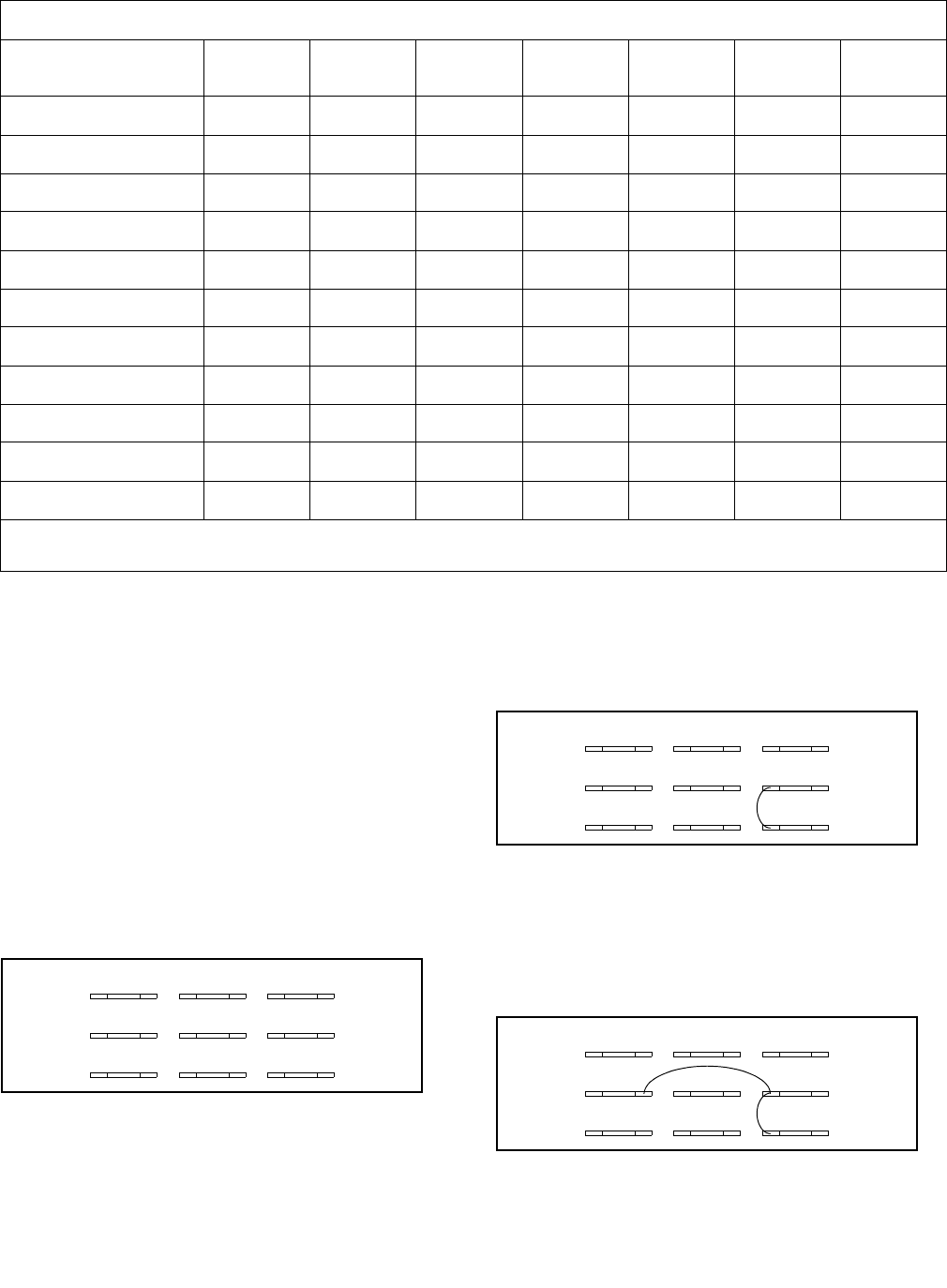

Mechanical Timer Cycle Time Options
Jumper Setting Prewash Wash Rinse 1 Rinse 2 Rinse 3
Final
Spin
Cycle
Time*
None
4 8 1.5 1.5 1.5 4 27.5
1a to 3a
4 4 1.5 1.5 1.5 4 23.5
1a to 3a to 3b
-- 4 1.5 1.5 1.5 4 18.5
1a to 3a to 3b to 5b
-- 4 1.5 1.5 1.5 2 16.5
1a to 3a to 5a**
2 4 1.5 1.5 1.5 4 21.5
1a to 3a to 5a to 5b
2 4 1.5 1.5 1.5 2 19.5
1a to 3b
-- 8 1.5 1.5 1.5 4 22.5
1a to 3b to 5b
-- 8 1.5 1.5 1.5 2 20.5
1a to 5a
2 8 1.5 1.5 1.5 4 25.5
1a to 5a to 5b
2 8 1.5 1.5 1.5 2 23.5
1a to 5b
4 8 1.5 1.5 1.5 2 25.5
*Cycle times do not include fill or heat times.
**Factory setting.
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
1b 1 1a
3b 3 3a
5b 5 5a
