Operation
37
512685

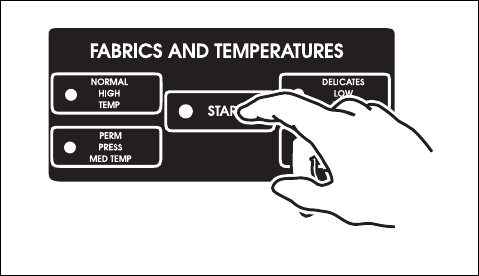

Step 7: Start Dryer
To start dryer, push START pad.
To stop dryer at any time, open the door. To restart the
dryer, close door and push START pad.
Cycle is completed when time remaining reaches
00 minutes.
Figure 52
Indicator Lights
INSERT COINS
INSERT COINS is lit to prompt the user to insert coins
or card to satisfy the vend price for the chosen cycle.
When INSERT COINS is lit, the three digits and
decimal point will display the vend price remaining to
be satisfied.
PUSH START
PUSH START is lit whenever the dryer is not in a
cycle, the full vend price has been satisfied and the
dryer door is closed. When the START pad is pressed,
the cycle will begin or resume. The PUSH START
status word flashes at one-second intervals when
activated.
DRYING
DRYING is lit to indicate that one of the heated cycles
(HIGH TEMP, MED TEMP, LOW TEMP) is currently
in operation. The status word DRYING goes off at the
end of a heated cycle or when the COOL DOWN cycle
begins.
DOOR OPEN
DOOR OPEN is lit and flashes at one-second intervals
whenever the dryer door is open.
COOL DOWN
COOL DOWN is lit whenever the COOL DOWN
portion of a heated cycle is active. It is also lit when
the NO HEAT cycle is in operation.
PRICE
PRICE is lit to indicate that the value displayed is the
vend pricing remaining to be satisfied. Once the vend
price is satisfied, the word PRICE will go off.
TIME REMAINING
TIME REMAINING is lit to indicate that the time
displayed by two digits and the colon is the time
remaining (in minutes) in the active cycle. The colon
flashes at one-second intervals and time continually
counts down in an active cycle.
Should dryer stop before cycle is completed, the motor
overload protector may have cycled. Refer to
Maintenance section.
