Installation
23
512685

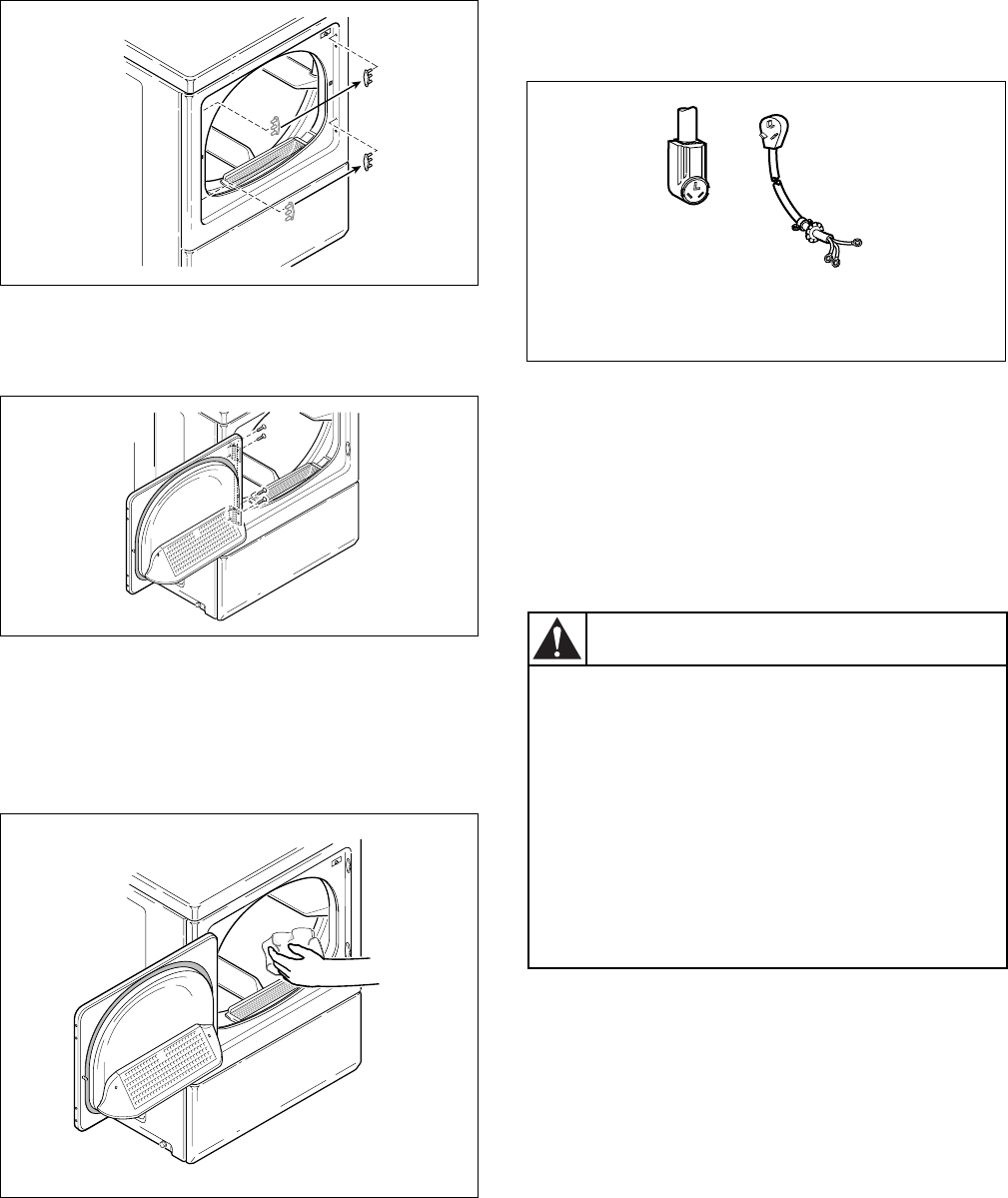

8. Using screwdriver, remove two door plugs, and
reinstall on opposite side of door opening.
9. Reinstall four hinge attaching screws, removed in
Step 1.
Step 6: Wipe Out Inside of Dryer
Before using dryer for the first time, use an all-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside dryer drum.
Step 7: Plug In the Dryer
Electric Dryer
Connect the dryer to an electrical power source. Refer
to Step 4 for information on connecting power cord.
Figure 30
Gas Dryer
Dryer requires 120 Volt, 60 Hertz electrical supply and
comes equipped with a 3-prong grounding plug. Refer
to serial plate for specific electrical requirements.
NOTE: The wiring diagram is located inside the
control hood.
When plugging in the dryer:
• Do not overload circuits.
• Do not use an adapter.
• Do not use an extension cord.
• Do not operate both a washer and gas dryer on
the same circuit. Use separetely fused 15 amp
circuits.
Figure 27
Figure 28
D604I
Figure 29
D317S
D317S
D606I
D606I
D604I
D275I
Connect to 30 Amp circuit.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING
