NOTE: During coin slide installation, make sure
activation lever is up and off the switch. Refer to
Figure 38.

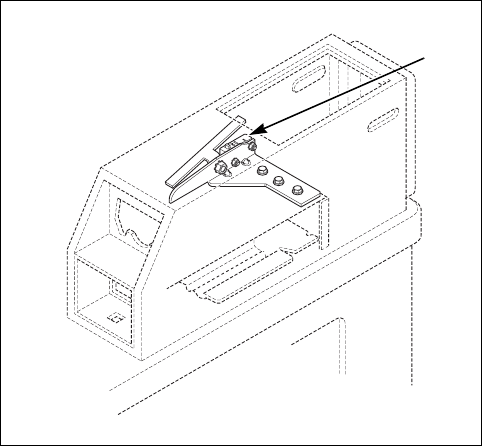

Figure 38
6. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
NOTE: To avoid long run-down time (45 minutes
factory default) when testing operation, refer to
Test Setting section.
Installing Extension Onto Coin Slide:
Option 2
1. Install coin slide according to manufacturer’s
instructions.
2. Insert coins into coin slide and slowly push slide
in. Stop before coins fall into coin box. This will
allow installing extension through meter case
service door opening.
3. Install slide extension onto top of coin slide using
two screws and lockwashers. Refer to Figure 37.
NOTE: Make sure extension lever is above switch
activation lever.
4. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
NOTE: To avoid long run-down time (45 minutes
factory default) when testing operation, refer to
Test Setting section.
