Installation
13
512685
Multi-Dryer Installation Exhaust
Requirements

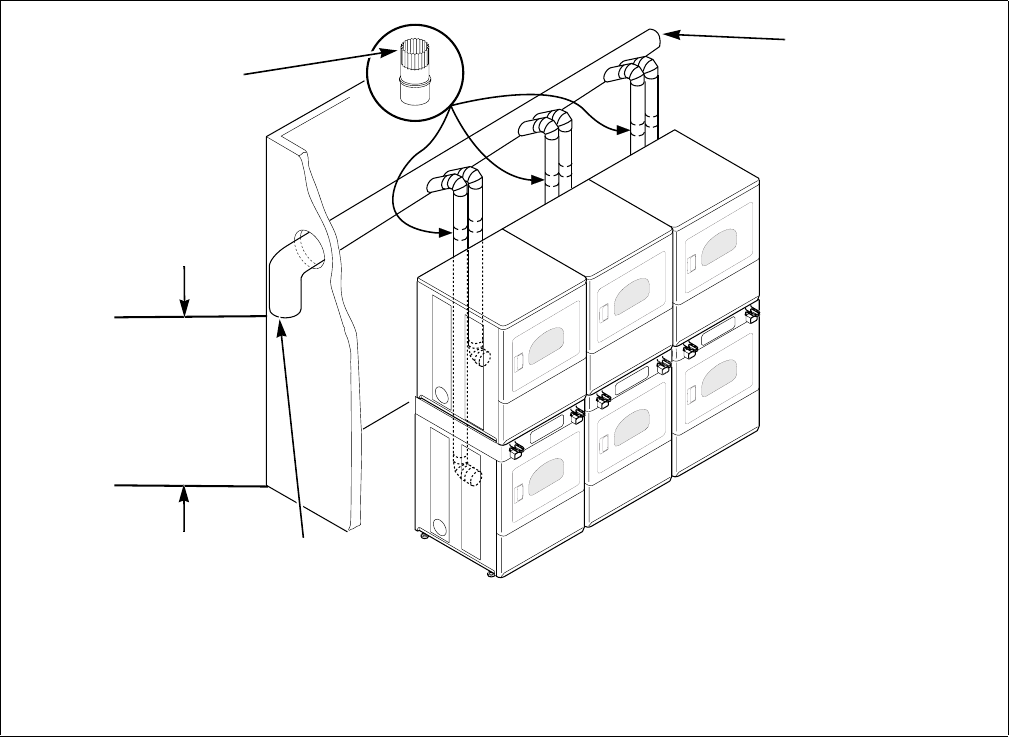

Figure 5 shows a typical example of a multiple dryer
installation. Note how each dryer has its own exhaust
system vented to the central exhaust duct.
Figure 5
D359I
1 58786 Backdraft Damper (Available through
your local authorized parts source)
3 Weather Hood or Sweep Elbow
(No cap or screen)
2 Clean Out Cover (Must be provided). Inspect
monthly.
2
1
3
METERED MODELS
ILLUSTRATED
24 IN. (61 CM)
MINIMUM
CLEARANCE TO
ROOF/GROUND
