923ACF Adorn Cast Front Installation

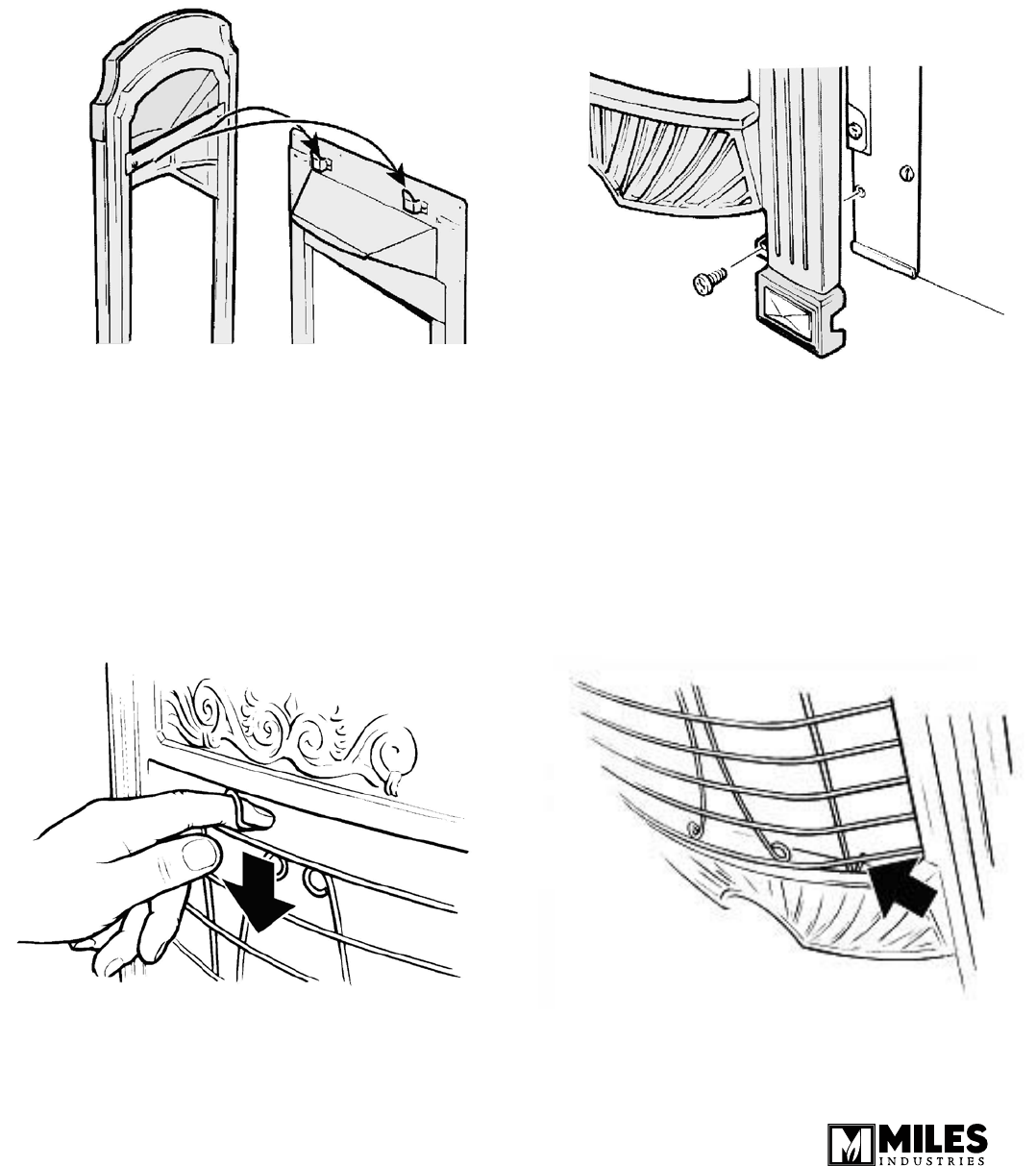

Carefully lift the casting. Place it against the replace front surface so that the retaining strip at the back of the

casting is above the two upper retaining brackets at the top of the convection box.

Lower the casting making sure that the rear retaining strip locates fully over the retaining brackets on the

convection box—see gure below.

Slide the front casting/surround sideways, if necessary, to align the bottom xing holes with those in the

convection box. Fix the bottom of the casting/surround to the convection box with two screws—see gure below.

1.

2.

3.

Locate the guard bottom wires over the ash lip.

Hold the top springs down and swing the guard back.

Release the springs so that they locate behind the canopy—see gures below.

1.

2.

3.

Adorn Safety Guard Fitting
