ASUS TUSL2-C User’s Manual
3. HARDWARE SETUP
22
Motherboard Settings
3. H/W SETUP
6) CPU External Frequency Setting (DSW)
This option tells the clock generator what frequency to send to the CPU, DRAM,
AGP, and the PCI bus. This permitss the selection of the CPU’s External
frequency.
IMPORTANT:
1. In JumperFree mode, all dip switches must be set to OFF.
2. When JumperFree mode is enabled, use BIOS setup in place of these switches
(see CPU Internal Frequency in the Advanced Menu of BIOS Setup).
NOTE: Only selected switches are illustrated. For a complete frequency listing,
see the next page.

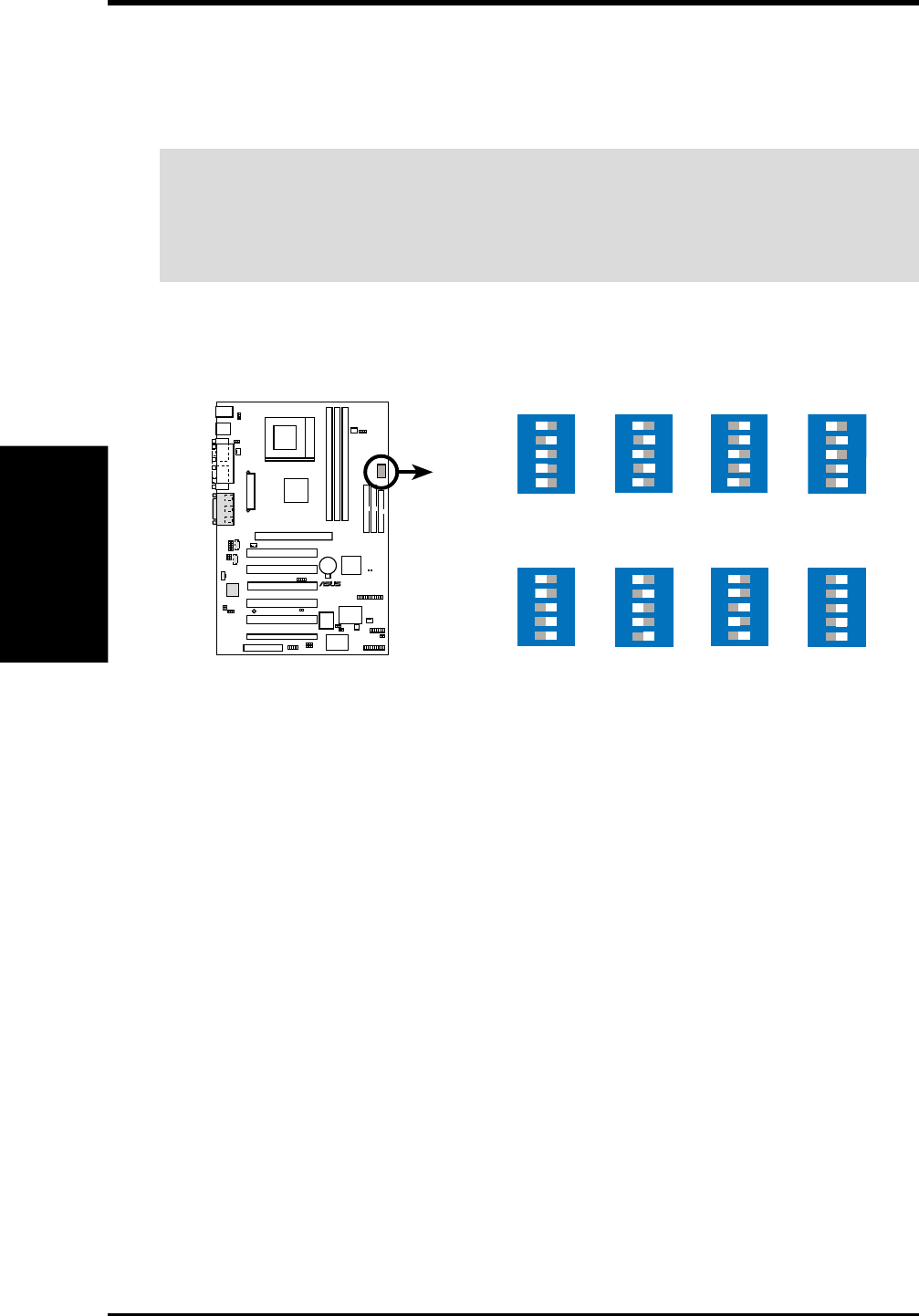

TUSL2-C CPU External
Clock (BUS) Frequency
Selection
DSW
CPU
DRAM
AGP
ON
12345
ON
12345
ON
12345
66MHz
100MHz
66MHz
ON
12345
ON
12345
ON
12345
ON
12345
ON
12345
(JumperFree Mode)
133MHz
100MHz
66MHz
103MHz
103MHz
68MHz
100MHz
100MHz
66MHz
140MHz
140MHz
70MHz
133MHz
133MHz
66MHz
140MHz
105MHz
70MHz
CPU
DRAM
AGP
TUSL2-C
®
NOTE: If the processor does not have a locked Frequency Multiple, you must
use CPU Core:Bus Freq. Multiple in 4.4 Advanced Menu to set the Frequency
Multiple. If the Frequency Multiple is locked, setting the Frequency Multiple in
BIOS setup will have no effect.
