Parts of the Camera
Parts of the Camera

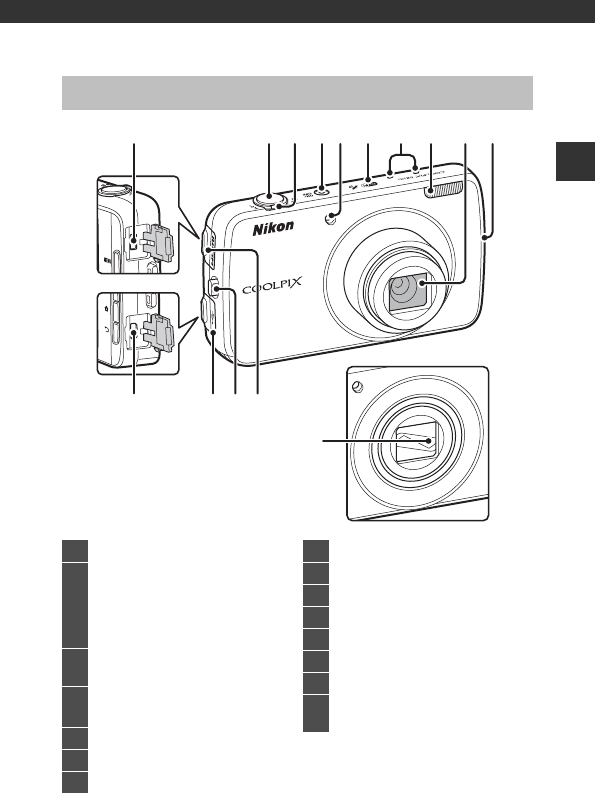

The Camera Body
115 2 3 4 6 75
89
13 12 1114
10
Lens cover closed
1 Shutter-release button......................24
2
Zoom control..........................................23
f: wide-angle..................................23
g: telephoto........................................23
h: thumbnail playback..............65
i: playback zoom............................64
3
Power switch/power-on lamp
..................................................................13, 18
4
Self-timer lamp.......................................49
AF-assist illuminator............77, E56
5 GPS antenna....................................E65
6 Microphone (stereo)................... 72, 85
7 Flash..............................................................47
8 Lens
9 Wi-Fi (wireless LAN) antenna
10 Lens cover
11 HDMI connector cover......94, E14
12 Eyelet for camera strap ........................2
13 USB connector cover..........12, 94, 97
14 Micro-USB connector..........12, 94, 97
15
HDMI Micro connector (Type D)
.........................................................94, E14
