Introduction
7
F232219
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

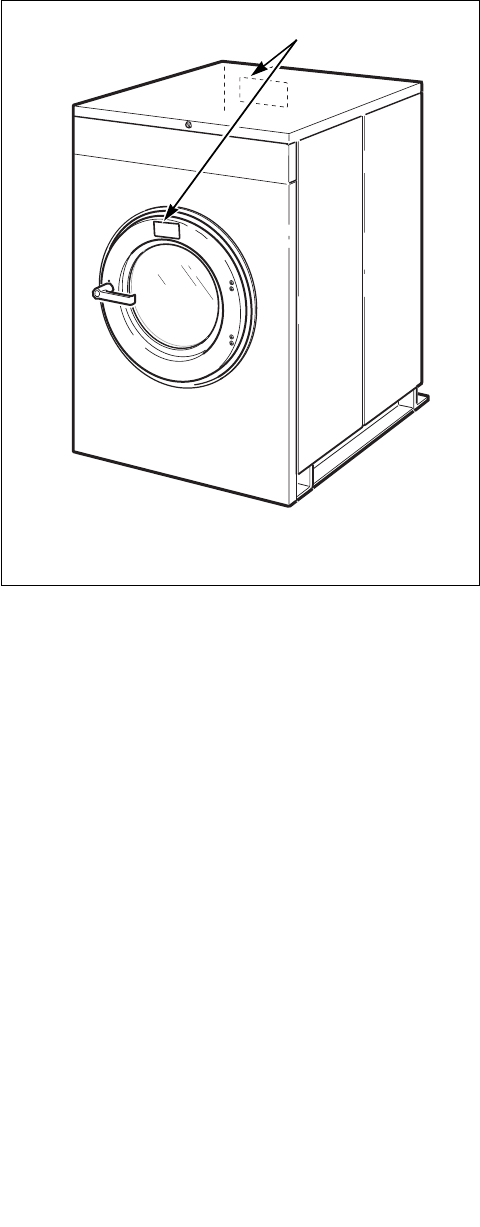

Nameplate Location
The nameplate is located at the rear of the machine and
inside door. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at (920) 748-3950
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call: (920) 748-3121 Ripon,
Wisconsin.
Summary of Control Outputs and
Inputs
Outputs
General outputs provide signals to operate the
following components.
1. Hot Fill Valve
2. Cold Fill Valve
3. Drain Valve (normally open)
4. Door Lock Solenoid Coil
5. Door Unlock Solenoid Coil
6. Supply 1 (detergent)
7. Supply 2 (bleach)
8. Supply 3 (sour/softener)
9. Supply 4
10. Supply 5 or Optional 3rd (auxiliary) Fill Inlet
(governed by the configuration settings)
11. Optional Heat
For standard models, the components for outputs
shown as “optional” will not be populated on the
output printed circuit board.
AC outputs are solid state outputs that operate either
120 Volt AC or 220 Volt AC (nominal voltage)
components, depending on the control voltage
configuration. Outputs are fused appropriately.
Inputs
1. Low Water Level
2. Medium Water Level
3. High Water Level
4. Door
5. Temperature Signal (only for machines with heat
option)
Control Voltage
The control power supply can be configured to operate
on 110 Volt AC nominal RMS input voltage
50/60 Hertz, OR 220 Volt AC nominal RMS input
voltage 50/60 Hertz.
CHM2060N
1 Nameplate
C
1
