Installation
19
510963

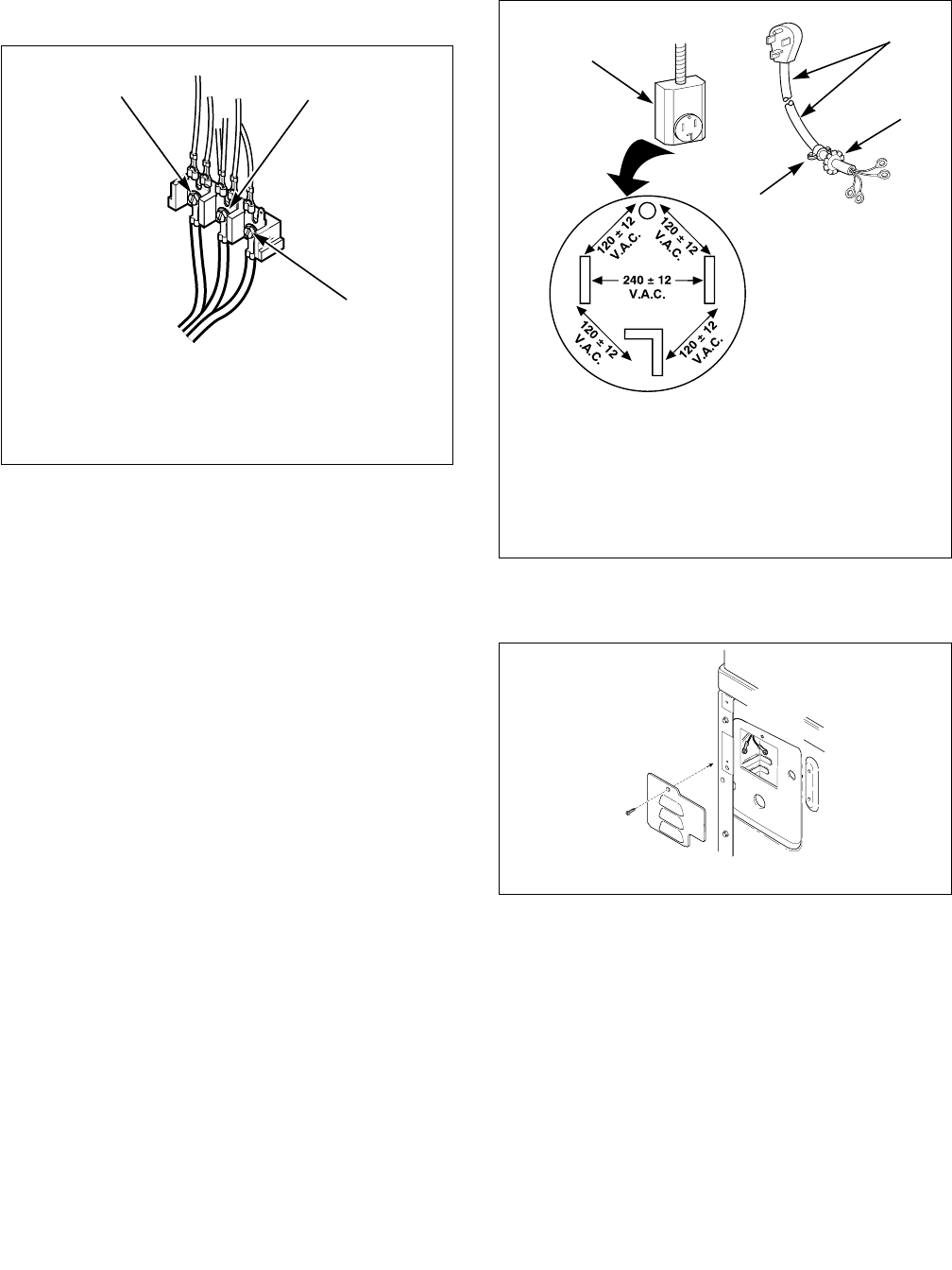

3. Use the three screws from the envelope located in
the cylinder to attach the power cord wires to the
terminal block.
Figure 17
4. Tighten all screws firmly.
IMPORTANT: Failure to tighten these screws
firmly may result in wire failure at the terminal
block.
5. Secure the strain relief to the power cord, or
wires, where they enter the dryer cabinet.
6. Check the continuity of the ground connection
before plugging the cord into an outlet. Use an
acceptable indicating device connected to the
center grounding pin of the plug and the green
screw on the back of the cabinet.
7. Reinstall access cover and screw.
Four-Wire Plug
Figure 18
1. Remove access cover from rear of dryer.
Figure 19
D286I
1 “L1” Terminal
2 Neutral Terminal
3 “L2” Terminal
1
2
3
D815I
1 Typical Four-Wire Receptacle
2 Power Cord – Not Supplied with Dryer
(Four-Wire)
3 Strain Relief Nut
4 Strain Relief
D695I
1
2
3
4
