Chapter 2: Installation
2-13
Serial Ports
A COM Port is located on the IO
Backplane. See the table on the right
for pin de nitions.
Serial Port Pin De nitions
(COM1)
Pin # De nition Pin # De nition
1 CDC 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
Video Connector
A Video (VGA) connector is located
next to the COM Port on the IO
backplane. This connector is used
to provide video and CRT display.

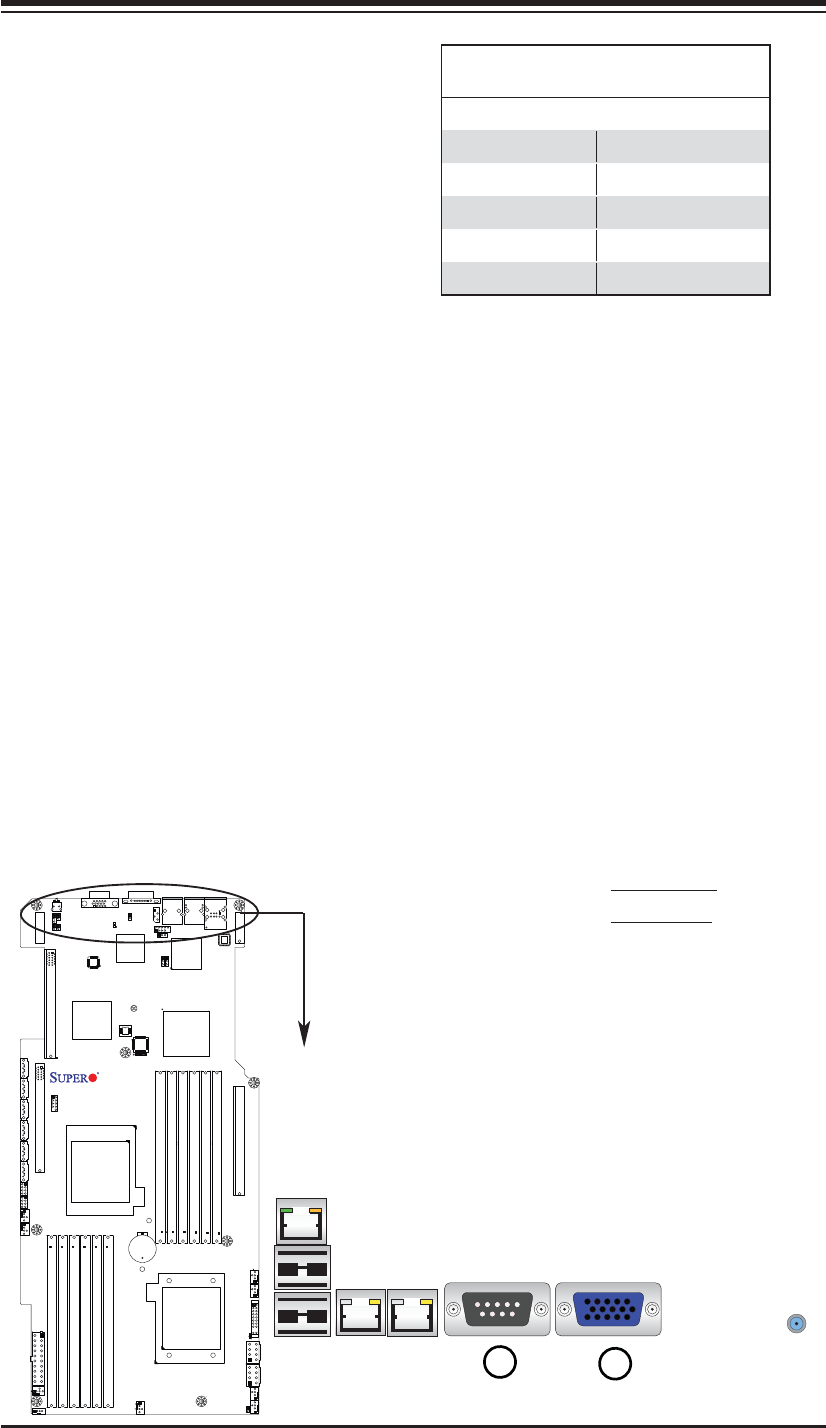

Refer to the board layout below for
the location.
1. COM Port
2. VGA Port
X8DTG-DF
1
2
