PCAN-USB Hub – User Manual
23
Appendix B Quick Reference
Software/Hardware Installation under Windows
Before connecting the PCAN-USB Hub to the computer set up the
corresponding software package (PCAN-USB) from the supplied CD
(with administrator privileges). Afterwards connect the PCAN-USB
Hub to a USB port at your computer. The Hub is recognized by
Windows and the drivers are initialized. After the installation
process for the CAN interface is finished successfully the red CAN
LED on the hub is on. The RS-232 interfaces are accessible as virtual
COM ports.
CAN Access
Run the CAN monitor PCAN-View from the Windows Start menu as
a sample application for accessing the CAN interface of the PCAN-
USB Hub. For initialization of the CAN interface select the CAN
transfer rate (Baud rate).

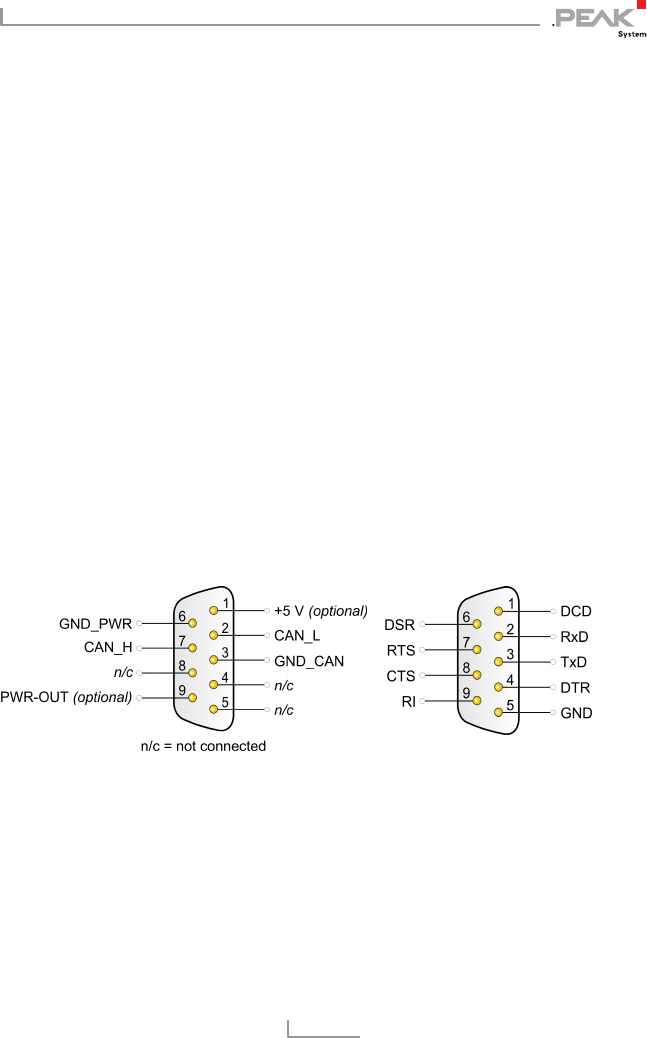

High-speed CAN RS-232
