F232148 (EN)
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
Operation
V-Computer
1. Turn on main power source (circuit breaker).
2. Turn on the ON/OFF switch on the front panel to
the ON position. Refer to Figure 9.
3. Push button and turn handle clockwise. Refer to
Figure 8.

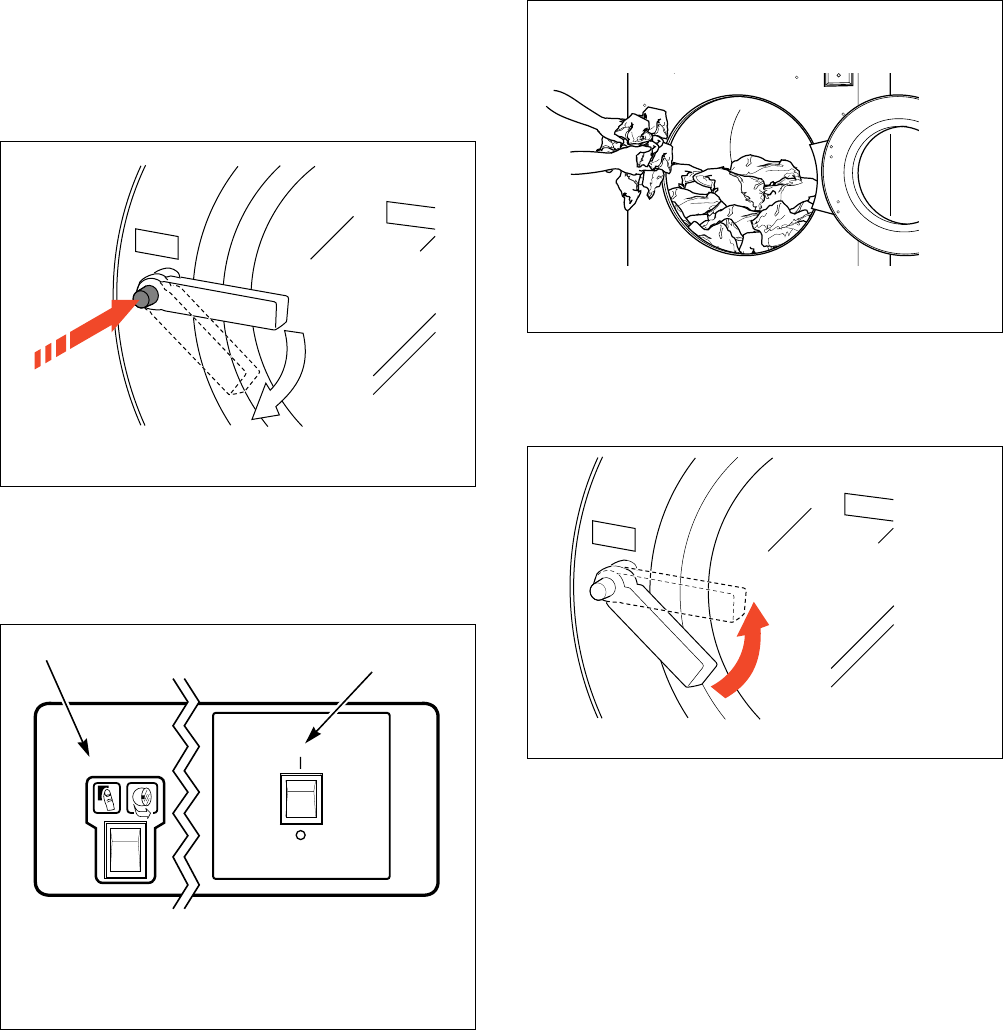

Figure 8
4. Press and hold the DOOR UNLOCK button on
the left side of the control panel while performing
the above step. Refer to Figure 8 and Figure 9.
Figure 9
5. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 10.
Figure 10
6. Close door and turn handle counterclockwise
until button pops out. Refer to Figure 11.
Figure 11
U001IE1B
CFS1N
1 DOOR UNLOCK Button
2 ON/OFF Switch
U001IE1B
1
2
U003IE1A
U005IE1B
U003IE1A
U005IE1B
