2-12
MS-7242 Mainboard
PIN SIGNAL PIN SIGNAL
1 GND 2 RXN
3 RXP 4 GND
5 TXN 6 TXP
7 GND

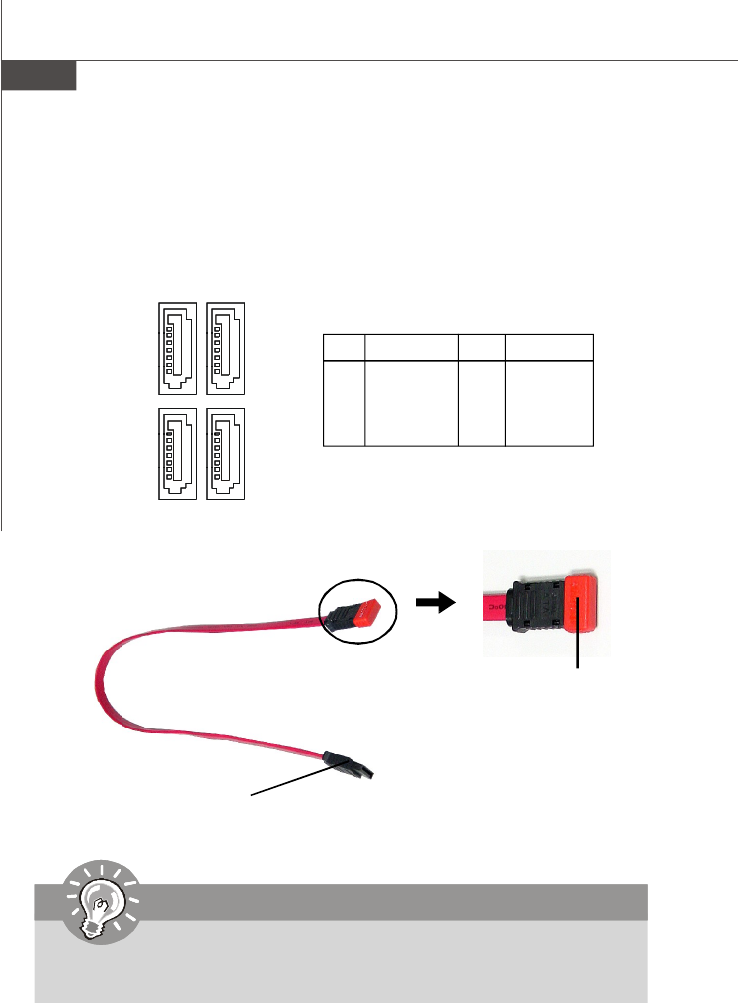

SATA1~ SATA4 Pin Definition
Connect to SATA1/2/3/4
Take out the dust cover
and connect to the hard
disk devices
Serial ATA cable
Serial ATA Connectors: SATA1~SATA4
SATA1~SATA4 are high-speed SATA II interface ports and support SATA II data rates
of 300MB/s. Each SATA II connector can connect to 1 hard disk device and is fully
compliant with Serial ATA 2.0 specifications.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
7
1
SATA4SATA3
SATA2SATA1
7
1
