2-6
MS-7242 Mainboard

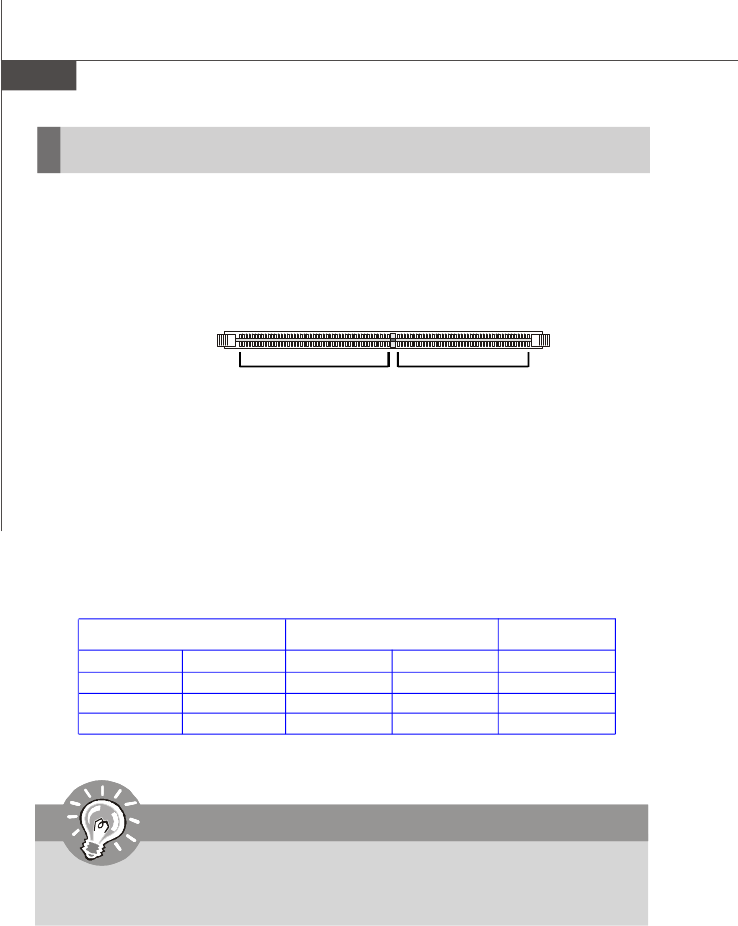

Memory
The mainboard provides four 240-pin DDRII 800/667/533/400 DIMM slots and sup-
ports up to 8GB system memory.
For more information on compatible components, please visit http://www.msi.com.
tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.
Memory Population Rules
This mainboard supports DDRII 800/667/533/400 memory interface.
Each DIMM slot supports up to a maximum size of 2GB. Users can install either single-
or double-sided modules depending on their needs.
Important
Make sure that you install memory modules of the same type and density on
DDRII DIMMs.
DIMM1 (CH A) DIMM3 (CH A) DIMM2 (CH B)DIMM4 (CH B) Mode
128MB~2GB 128MB~2GB Dual Channel
128MB~2GB 128MB~2GB Dual Channel
128MB~2GB 128MB~2GB 128MB~2GB 128MB~2GB Dual Channel
GREEN Slots ORANGE Slots
64x2=128 pin 56x2=112 pin
DDRII
240-pin, 1.8V
Dual-Channel: Channel A in GREEN; Channel B in ORANGE
