2-15
Hardware Setup

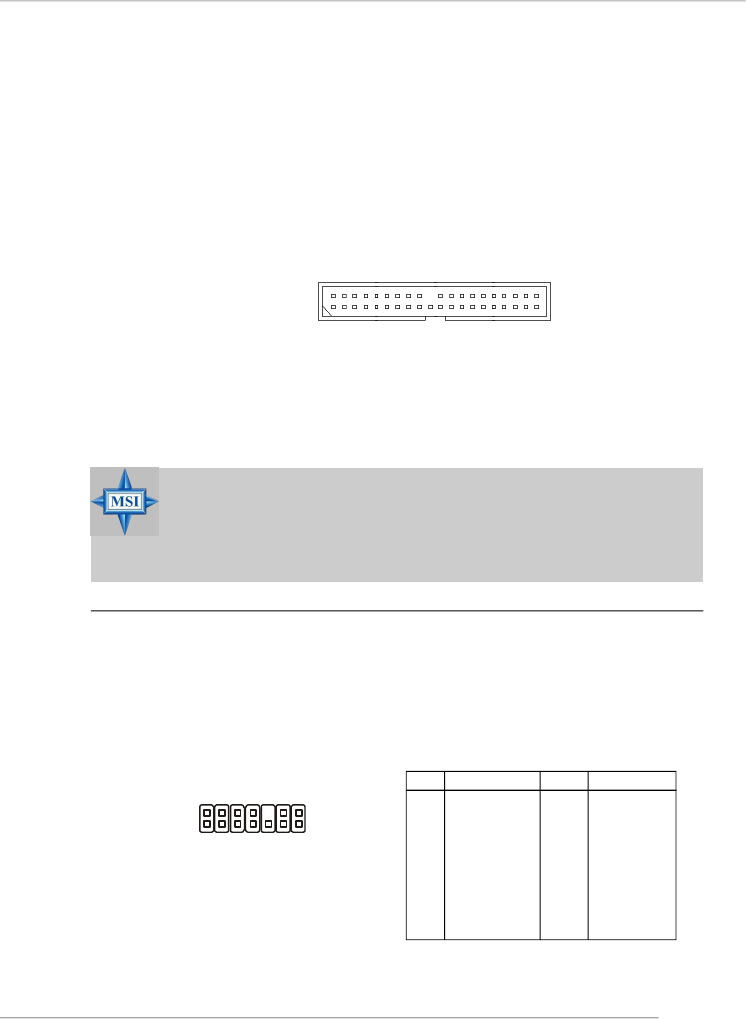

Hard Disk Connector: IDE1
The mainboard has one 32-bit Ultra DMA 66/100 IDE controller integrated in the
chips Intel ICH7R, which supports PIO & Bus Master operation modes and it can
connect up to two Ultra ATA drives.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk
documentation supplied by hard disk vendors for jumper setting
instructions.
IDE1 (blue)
JLPC1 Pin Definition
PIN SIGNAL PIN SIGNAL
1 LCLK 2 Key (no pin)
3 LRST# 4 VCC3
5 LAD0 6 FID0_LRST
7 LAD1 8 VCC5
9 LAD2 10 Key (no pin)
11 LAD3 12 GND
13 LFRAME# 14 GND
JLPC1
13
14
2
1
FWH/LPC Debugging Pin Header: JLPC1
The pin header is for internal debugging only.
