MS-7204 mBTX Mainboard

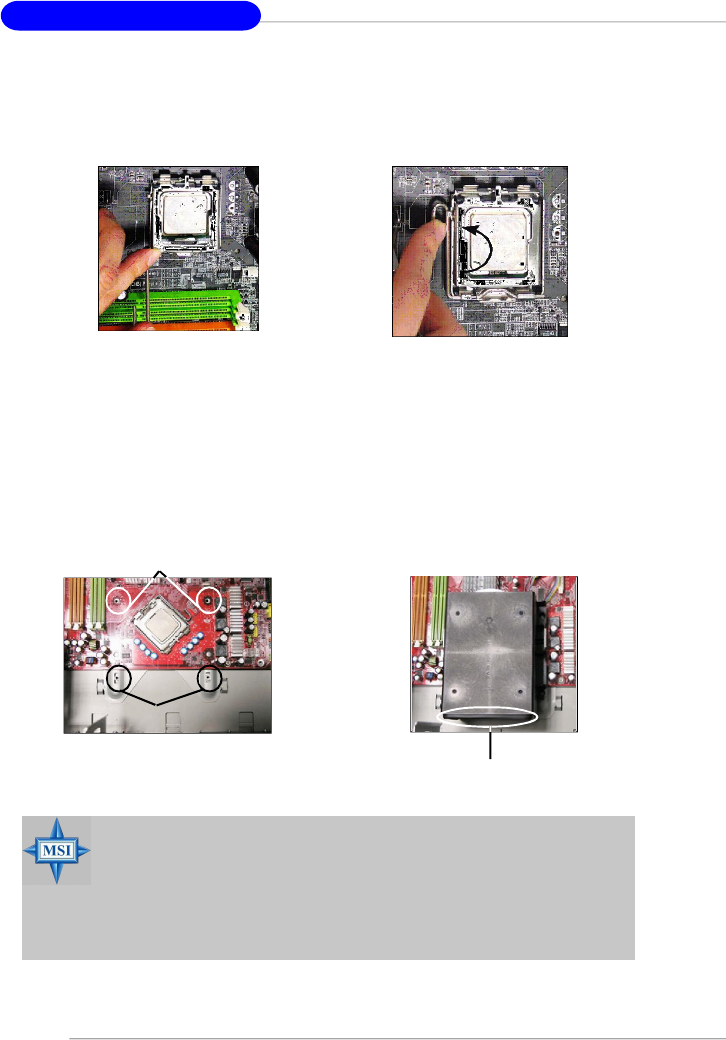

12. Press down the load lever lightly
onto the load plate, and then secure
the lever with the hook under reten-
tion tab.
11.Visually inspect if the CPU is seated
well into the socket, then remove the
CPU Clip with 2 fingers. Then cover
the load plate onto the package.
13.Position the mainboard into the chas-
sis and use the retaining screws to
secure it into the place. Then align
the holes on the mainboard and chas-
sis with the cooler.
Holes on case
Holes on mainboard
14.Put down the cooler and use the
retaining screws of the cooler to se-
cure it into the place. Make sure the
cooler is in the proper orientation, the
cooler will only fit in the right
orientation. (Please refer the pictures
below.)
The fan of the cooler.
MSI Reminds You...
1.Check the information in PC Health Status of H/W Monitor in BIOS
(Chapter 3) for the CPU temperature.
2. Whenever CPU is not installed, always protect your CPU socket pin
with the plastic cap covered (shown in Figure 1) to avoid damaging.
3. Please note that the mating/unmating durability of the CPU is 20 cycles.
Therefore we suggest you do not plug/unplug the CPU too often.
